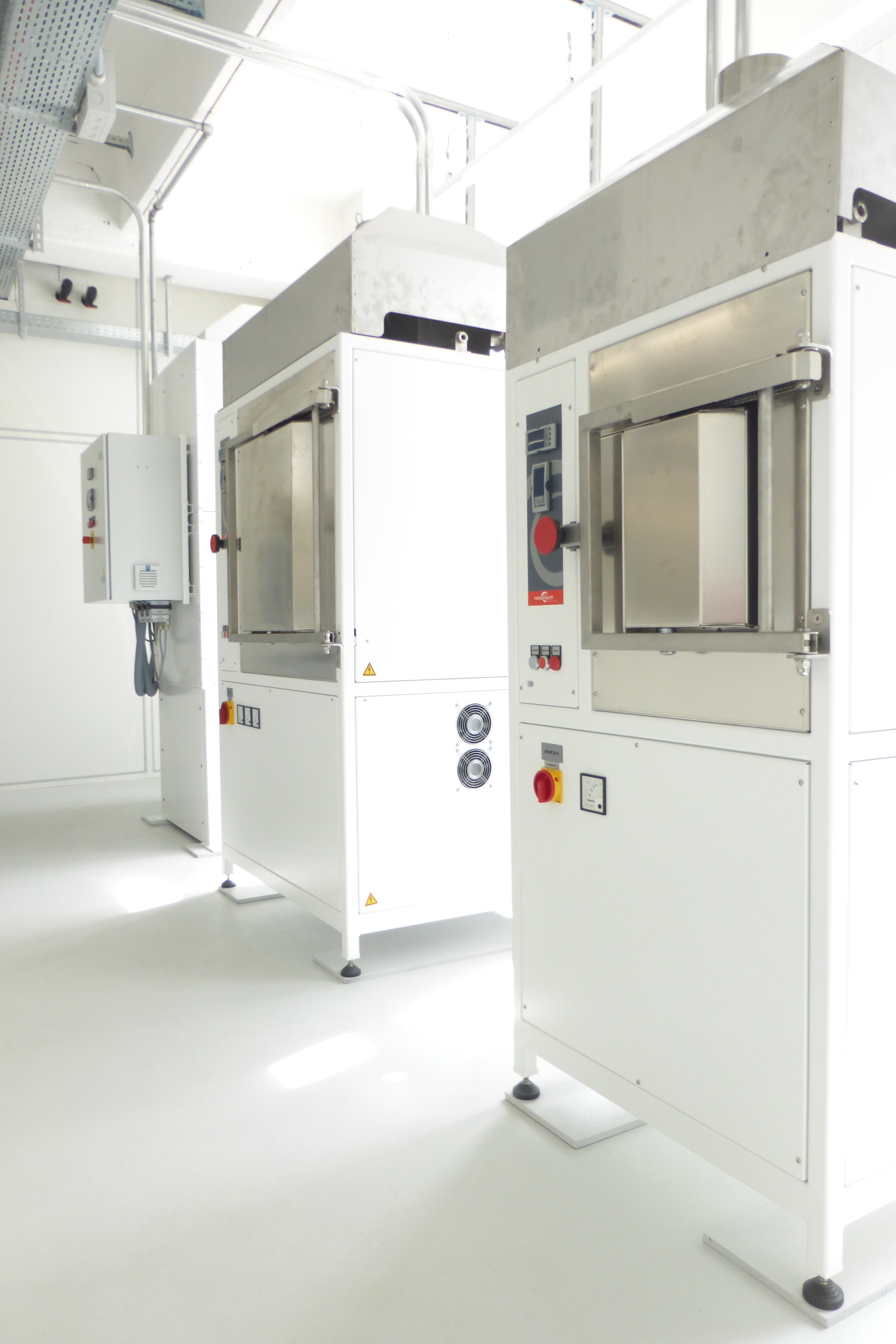

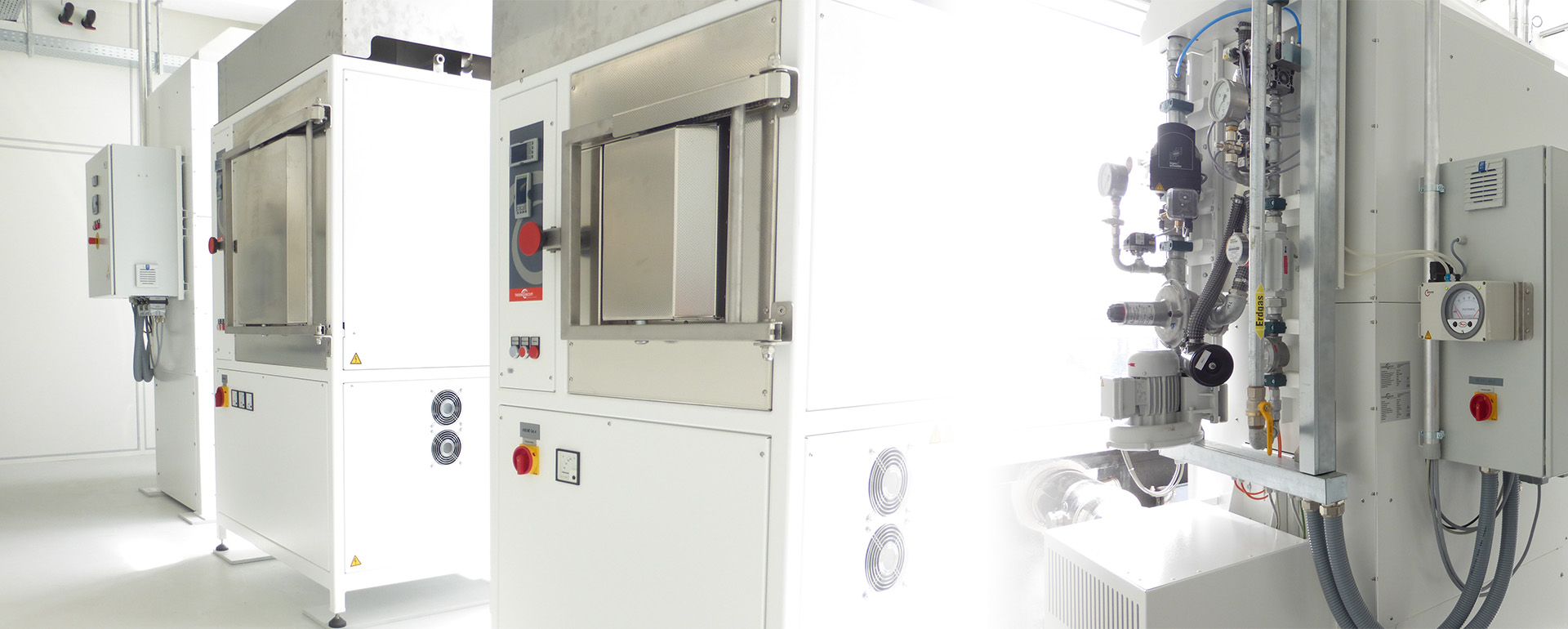

Production hall with two rows of different sintering furnace models.

Sintering furnaceEfficient high-temperature technology - precision in every degree

Frequently asked questions about sintering furnaces

A sintering furnace is a special furnace that generates high temperatures to join materials through sintering processes without them melting completely. This technology is used in various industries, such as ceramics manufacturing, technical ceramics, dentistry and metal processing.

The sintering process is carried out by heating powders or materials to just below their melting point. This causes the particles to bond and a solid material is formed. The sintering oven precisely controls the temperature and time to achieve the desired degree of sintering, which is crucial for many production processes.

Sintering furnaces are used in various industries, including:

  • Ceramics: High-temperature sintering for technical and decorative ceramics.
  • Dentistry: production of dental prostheses from sintered zirconium oxide.
  • Additive manufacturing: Sintering of metal and ceramic powders in 3D printing technology.
  • Metallurgy: Powder metallurgy for the production of complex components.

A sintering oven is not suitable for materials that require a complete melting process. In addition, some plastics or organic materials that need to be processed at lower temperatures cannot be sintered efficiently. Conventional melting or pressing processes are more suitable for these materials.

You can find an overview of our furnaces here >>

Three different sintering furnaces side by side

Our sintering oven models for sintering or combined debinding and sintering in one process

Get to know our various sintering furnace models and learn all about how they work, their properties and the different areas of application

Chamber ovens

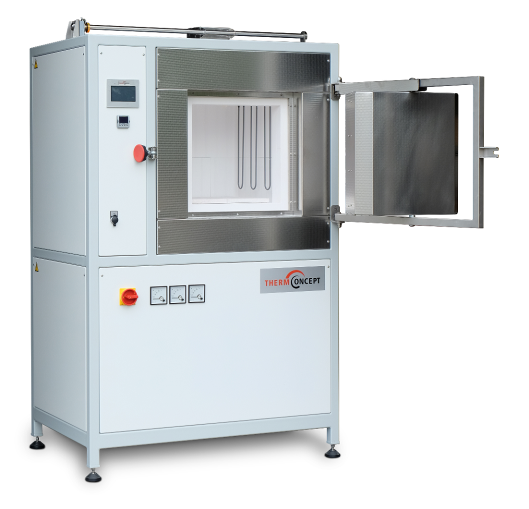

A product photo of a chamber furnace in the sintering furnace category

  • Wide range of standard furnaces with a usable volume of 16-500 l.
  • Larger ovens up to 5 m³ are possible, for example
  • Supply of furnaces in customized designs for precise adaptation to the desired processes
  • Free-standing models with maximum precision and convenience, fast heat-up and cool-down times, low connected loads.
  • Outer housing of unstable and elegant frame construction
  • Double-walled housing with forced cooling, resulting in very low outer wall temperatures
  • Door and door frame made of stainless steel
  • Door with parallel guide, swivels hot side away from the operator

  • Furnace insulation made of high-quality aluminum oxide fiber materials with low thermal mass, rapid heating and cooling possible, exhaust air opening in the furnace roof
  • Floor reinforcement for increased loading weight
  • Heating takes place via the side walls.
  • State-of-the-art switching and control technology, switching of the heating elements via thyristors, particularly precise oven control, wear-free, noiseless
  • Automatic exhaust air flap in the oven ceiling
  • Start-up circuit

To the model series

Cubic chamber

Combi ovens

For sintering and debinding.

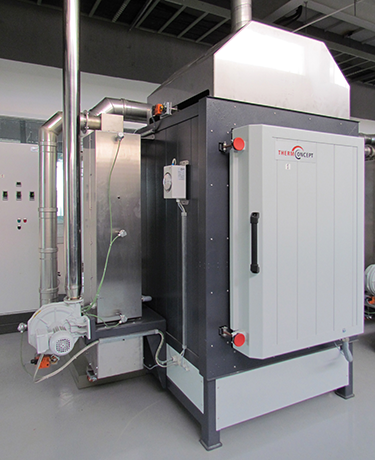

A product photo of a combi furnace in the sintering furnace category

  • High-temperature chamber furnaces with fresh air preheating and safety device
  • High-temperature chamber furnaces technically like the standard HTK models, but as combi ovens up to 300 l volume and T max. 1750 °C
  • Fresh air preheating: Preheated fresh air is blown in horizontally up to max. 500 °C
  • Automatic transition to the sintering process up to maximum temperature
  • Double-walled housing with forced cooling, resulting in very low outer wall temperatures
  • Furnace insulation made of high-quality aluminum oxide fiber materials with low thermal mass, rapid heating and cooling possible

  • With base reinforcement and level stacking support to protect the insulation and support heavy loads
  • Automatic exhaust air flap control with separate exhaust air piping and stainless steel exhaust air knife
  • Multi-zone oven control with additional separate control of fresh air preheating
  • Fully automatic system control via Siemens SPSS7-300

To the model series

Hood furnaces

Hood furnaces are often used when the furnace chamber must be easily accessible so that small and sensitive products can be loaded easily and carefully.

A product photo of a hood furnace of the sintering furnace category

  • Wide range of standard furnaces with a chamber volume of 70-2000 l
  • Special solutions and sizes possible
  • The model range includes hood furnaces with a vertically movable hood and a fixed table or alternatively a horizontally movable table
  • Also with shuttle table systems (swivel tables or double table systems) for semi-automatic or fully automatic operation.
  • Customized design for precise adaptation of the system to the desired processes
  • All furnace models are characterized by maximum precision and convenience as well as fast heat-up and cool-down times with low connected loads
  • For temperature ranges from 1500 °C to 1600 °C with SiC heating, for temperatures from 1600 °C to 1800 °C with MoSi2 heating elements

Lift-bottom version

Lift-top version

Bogie hearth furnaces

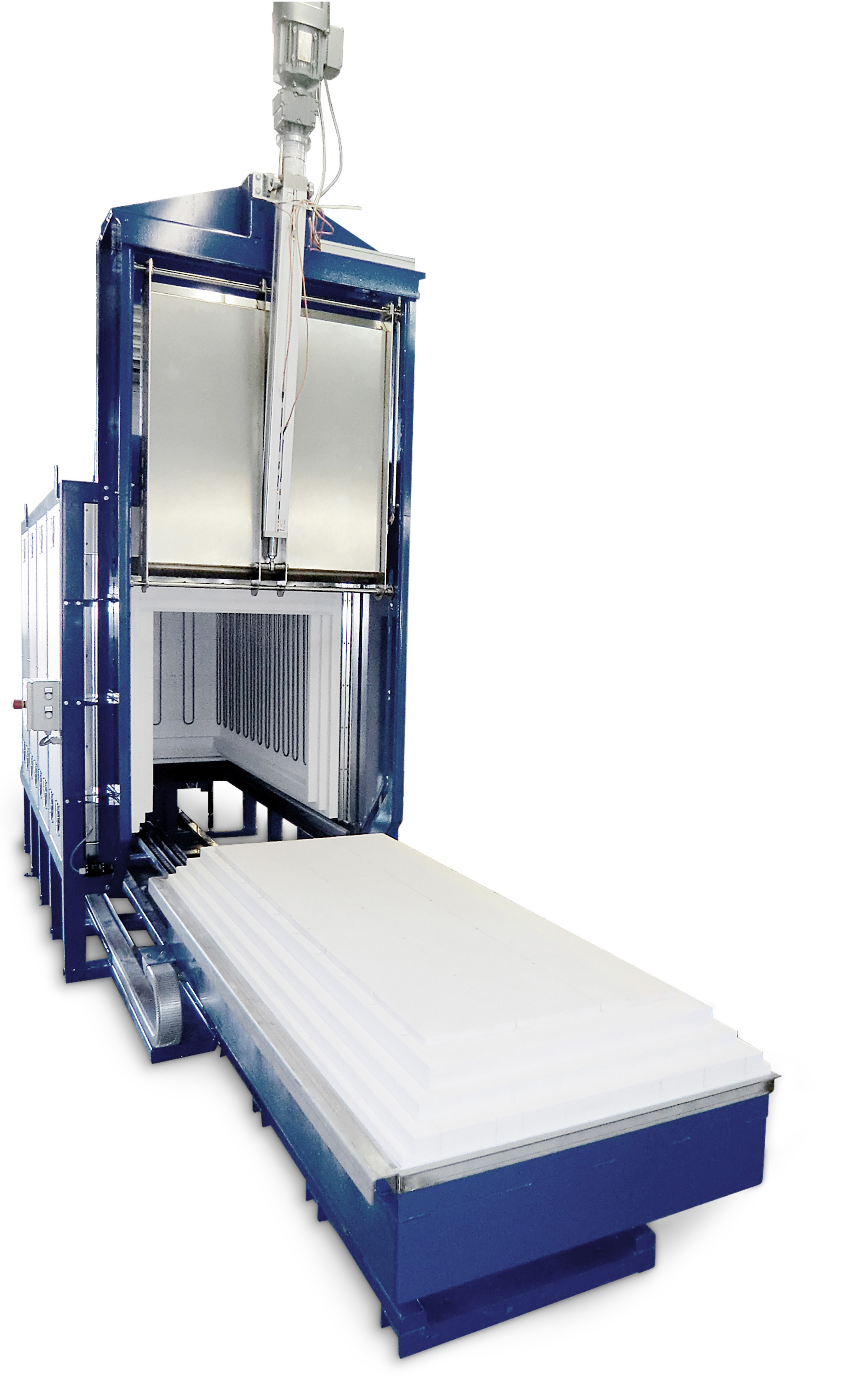

A product photo of a bogie hearth furnaces in the sintering furnace category

  • Standard furnace range with a chamber volume of up to 2000 l.
  • Delivery of furnaces in customized design and size for precise adaptation to the desired processes
  • The bogie hearth can be completely removed from the furnace for easy loading and unloading, on heavy-duty rollers for free movement in front of the furnace
  • Sturdy bogie hearth construction, fully insulated with high-quality fiber materials, sealing to the furnace housing via labyrinth guide
  • Bogie hearth floor reinforced for high loads

  • Double-walled stove housing with forced cooling,
  • therefore very low outer wall temperatures
  • Oven insulation made of high-quality aluminum oxide fiber materials with low thermal mass, rapid heating and cooling possible, exhaust air openings in the oven ceiling
  • Floor reinforcement for increased charging weight
  • Heating via high-quality MoSi2 heating elements
  • Heating takes place via the side walls. Additional heating via the rear wall is possible.
  • State-of-the-art switching and control technology, switching of the heating elements via thyristors, particularly precise oven control, wear-free, noiseless

To the model series

Tube furnaces

Tube furnaces are particularly suitable for testing small samples with high temperature accuracy. The small sample chamber and the very intensive, uniform heating ensure very good results over a defined length.

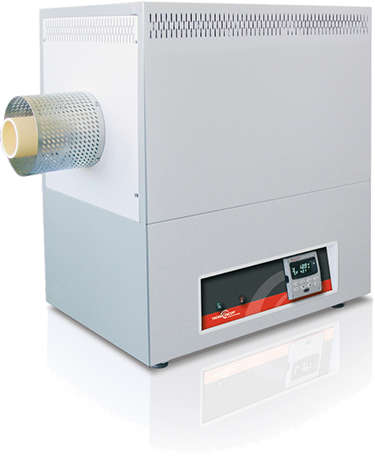

A product photo of a tube furnace of the sintering furnace category

  • Tube furnaces can be used to achieve very good inert gas atmospheres or a vacuum.
  • Depending on the series, tube furnaces can be operated horizontally, diagonally and/or vertically or individually adapted for installation in a test setup.
  • Robust housing design
  • High-quality insulation for low energy consumption and low electricity costs
  • Heating elements with a long service life for even heat transfer

To the model series
