Annealing furnaces up to 1300°C

PDF Download for this category:

Technical specifications

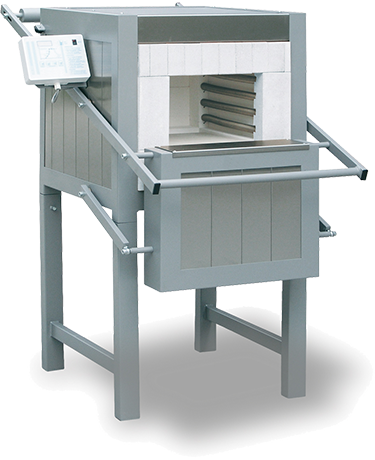

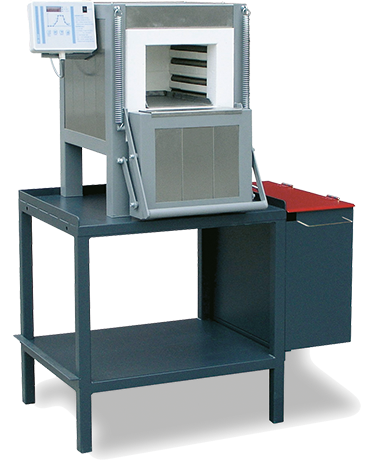

Annealing furnaces KM 10/13 – KM 90/13

Working temperatures up to 1300°C

PDF Download for this category:

Technical specifications

Previous Next KM 10/13 KM 15/13 KM 20/13 KM 30/13 KM 50/13 KM 70/13

1
2
3
4
5
6

Next model

Technical specifications
	Model	KM 10/13
	Max. temperature \| C°	1300°C
	Inside dimensions \| mm	W 250 x D 250 x H 120
	Outside dimensions \| mm	W 500 x D 600 x H 700
	Weight \| kg	69 kg
	Volume \| l	8 l
	Power \| kW	2,5 kW
	Voltage \| V	230 1/N V

Request now

Next model

Technical specifications
	Model	KM 15/13
	Max. temperature \| C°	1300°C
	Inside dimensions \| mm	W 250 x D 250 x H 200
	Outside dimensions \| mm	W 500 x D 700 x H 700
	Volume \| l	12,5 l
	Power \| kW	3,6 kW
	Voltage \| V	230 1/N V

Request now

Next model

Technical specifications
	Model	KM 20/13
	Max. temperature \| C°	1300°C
	Inside dimensions \| mm	W 250 x D 350 x H 200
	Outside dimensions \| mm	W 500 x D 700 x H 700
	Weight \| kg	91 kg
	Volume \| l	17,5 l
	Power \| kW	6,0 kW
	Voltage \| V	400 3/N V

Request now

Next model

Technical specifications
	Model	KM 30/13
	Max. temperature \| C°	1300°C
	Inside dimensions \| mm	W 250 x D 500 x H 200
	Outside dimensions \| mm	W 500 x D 850 x H 700
	Weight \| kg	105 kg
	Volume \| l	25 l
	Power \| kW	7,0 kW
	Voltage \| V	400 3/N V

Request now

Next model

Technical specifications
	Model	KM 50/13
	Max. temperature \| C°	1300°C
	Inside dimensions \| mm	W 350 x D 500 x H 250
	Outside dimensions \| mm	W 1000 x D 1300 x H 1400
	Weight \| kg	268 kg
	Volume \| l	44 l
	Power \| kW	13,0 kW
	Voltage \| V	400 3/N V

Request now

Next model

Technical specifications
	Model	KM 70/13
	Max. temperature \| C°	1300°C
	Inside dimensions \| mm	W 350 x D 750 x H 250
	Outside dimensions \| mm	W 1000 x D 1400 x H 1400
	Weight \| kg	330 kg
	Volume \| l	65 l
	Power \| kW	20 kW
	Voltage \| V	400 3/N V

Request now
