State-of-the-art control technology is a standard feature of THERMCONCEPT furnaces. Individual solutions are available for more complex processes.

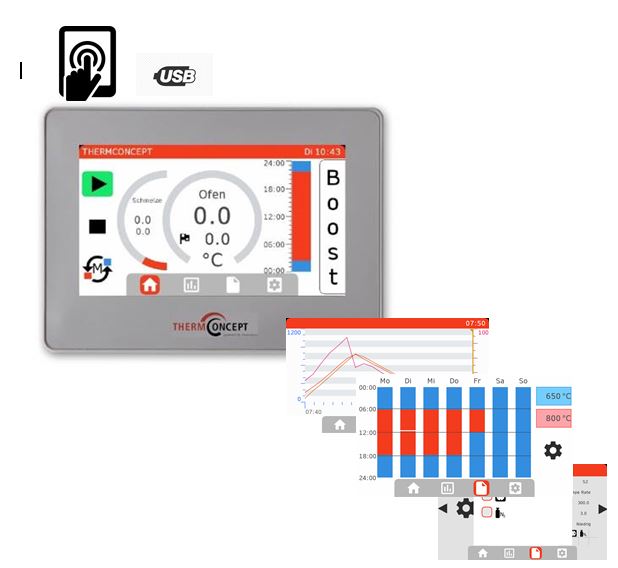

Performance features Touch Panel Controller TCP 400
4.3" touch panel
480x272 pixels, resistive surface, operation with gloves possible
Clear and intuitive operation, largely language-neutral via pictograms, for up to 3 heating zones + batch display or batch control,
Program controller with 10 programs and 24 segments each
Individual program names in plain text
Graphical view of the program progress
Real time display with date
Timer with max. 20 days lead time
Up to 5 program-controlled additional functions possible with corresponding extensions
Display of up to 3 operating states (depending on furnace model and version)
Several languages selectable
History of the last 10.5h on the display
The documentation of all process-relevant data plays an important role as proof of compliance with heat treatment regulations and for quality assurance. THERMCONCEPT offers a range of options for this purpose.
This standard covers requirements for temperature measurement in heat treatment plants of the aerospace industry and concerns furnaces and plants as well as their thermocouples, temperature controllers and displays. The documentation of heat treatment processes as well as regular system accuracy tests and temperature uniformity tests play an important role in quality assurance. These are carried out to ensure that components have been heat-treated in accordance with the applicable standards.
The heat treatment plants are grouped into furnace class (temperature distribution in the useful space) and instrumentation version (pyrometry version).
Furnace class 1 ±3°C
Furnace class 2 ±6°C
Furnace class 3 ±8°C
Furnace class 4 ±10°C
Furnace class 5 ±14°C
Furnace class 6 ±28°C
Controller, display, control thermocouples, recorder, overtemperature protection with alarm as well as high & low temperature sensors and min. 1 batch thermocouple
Controller, display, control thermocouple, recorder, overtemperature protection with alarm and min. 1 batch thermocouple
Controller, display, control thermocouple, recorder, overtemperature protection with alarm and high & low temperature sensors
Controller, display, control thermocouple, recorder, overtemperature protection with alarm
Controller, display, control thermocouple
The CQI-9 is a self-assessment for the heat treatment of components in the automotive industry and was introduced by a working group of leading international automotive manufacturers and suppliers and the International Organization for Standardization (ISO) for continuous improvement, defect prevention and reduction of process deviations.
Relevant contents were taken from the AMS 2750 and adapted to the heat treatments in the automotive industry with regard to application requirements, available furnace technology and test frequencies.
