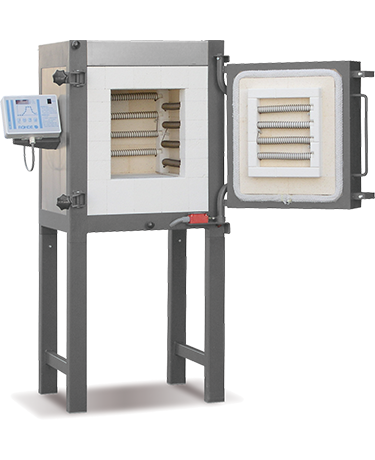

Chamber furnaces (5-sided heating) 1300 -1400°C

PDF Download for this category:

Technical specifications

Chamber furnaces (5-sided heating) KC 16/13 – KC 128/13

Working temperatures up to 1300°C

PDF Download for this category:

Technical specifications

Previous Next KC 16/13 KC 32/13 KC 64/13 KC 128/13

1
2
3
4

Next model

Technical specifications
	Model	KC 16/13
	Max. temperature \| C°	1300°C
	Inside dimensions \| mm	W 250 x D 250 x H 250
	Outside dimensions \| mm	W 650 x D 800 x H 1400
	Weight \| kg	160 kg
	Volume \| l	16 l
	Power \| kW	7,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KC 32/13
	Max. temperature \| C°	1300°C
	Inside dimensions \| mm	W 320 x D 320 x H 320
	Outside dimensions \| mm	W 700 x D 850 x H 1450
	Weight \| kg	190 kg
	Volume \| l	33 l
	Power \| kW	8,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KC 64/13
	Max. temperature \| C°	1300°C
	Inside dimensions \| mm	W 400 x D 400 x H 400
	Outside dimensions \| mm	W 780 x D 950 x H 1520
	Weight \| kg	250 kg
	Volume \| l	64 l
	Power \| kW	11,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KC 128/13
	Max. temperature \| C°	1300°C
	Inside dimensions \| mm	W 500 x D 500 x H 500
	Outside dimensions \| mm	W 880 x D 1050 x H 1620
	Weight \| kg	300 kg
	Volume \| l	125 l
	Power \| kW	15,0 kW
	Voltage \| V	400 3/N V

PDF Download for this category:

Technical specifications

Chamber furnaces (5-sided heating) KC 16/14 – KC 128/14

Working temperatures up to 1400°C

PDF Download for this category:

Technical specifications

Previous Next KC 16/14 KC 32/14 KC 64/14 KC 128/14

1
2
3
4

Next model

Technical specifications
	Model	KC 16/14
	Max. temperature \| C°	1400°C
	Inside dimensions \| mm	W 250 x D 250 x H 250
	Outside dimensions \| mm	W 700 x D 850 x H 1400
	Weight \| kg	250 kg
	Volume \| l	16 l
	Power \| kW	8,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KC 32/14
	Max. temperature \| C°	1400°C
	Inside dimensions \| mm	W 320 x D 320 x H 320
	Outside dimensions \| mm	W 780 x D 900 x H 1450
	Weight \| kg	330 kg
	Volume \| l	33 l
	Power \| kW	10,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KC 64/14
	Max. temperature \| C°	1400°C
	Inside dimensions \| mm	W 400 x D 400 x H 400
	Outside dimensions \| mm	W 860 x D 970 x H 1520
	Weight \| kg	365 kg
	Volume \| l	64 l
	Power \| kW	12,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KC 128/14
	Max. temperature \| C°	1400°C
	Inside dimensions \| mm	W 500 x D 500 x H 500
	Outside dimensions \| mm	W 960 x D 1080 x H 1 620
	Volume \| l	125 l
	Power \| kW	18 kW
	Voltage \| V	400 3/N V
