Muffle furnaces up to 1300°C

PDF Download for this category:

Technical specifications

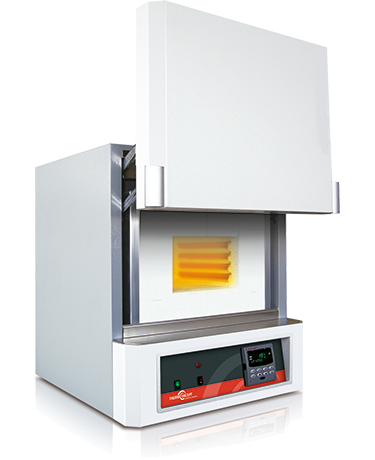

Chamber Furnaces KLS 05/11 – KLS 60/11

Working temperatures up to 1100°C

PDF Download for this category:

Technical specifications

Previous Next KLS 05/11 KLS 10/11 KLS 15/11 KLS 30/11 KLS 45/11 KLS 60/11

1
2
3
4
5
6

Next model

Technical specifications
	Model	KLS 05/11
	Max. temperature \| C°	1100°C
	Inside dimensions \| mm	W 200 x D 250 x H 140
	Outside dimensions \| mm	W 550 x D 580 x H 650
	Volume \| l	7 l
	Power \| kW	2,0 kW
	Voltage \| V	230 1/N V

Next model

Technical specifications
	Model	KLS 10/11
	Max. temperature \| C°	1100°C
	Inside dimensions \| mm	W 200 x D 250 x H 200
	Outside dimensions \| mm	W 560 x D 640 x H 720
	Volume \| l	10 l
	Power \| kW	3,6 kW
	Voltage \| V	230 1/N V

Next model

Technical specifications
	Model	KLS 15/11
	Max. temperature \| C°	1100°C
	Inside dimensions \| mm	W 220 x D 300 x H 230
	Outside dimensions \| mm	W 560 x D 640 x H 720
	Volume \| l	15 l
	Power \| kW	3,6 kW
	Voltage \| V	230 1/N V

Next model

Technical specifications
	Model	KLS 30/11
	Max. temperature \| C°	1100°C
	Inside dimensions \| mm	W 280 x D 380 x H 280
	Outside dimensions \| mm	W 590 x D 690 x H 790
	Volume \| l	30 l
	Power \| kW	6,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KLS 45/11
	Max. temperature \| C°	1100°C
	Inside dimensions \| mm	W 300 x D 500 x H 300
	Outside dimensions \| mm	W 660 x D 810 x H 820
	Volume \| l	45 l
	Power \| kW	7,5 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KLS 60/11
	Max. temperature \| C°	1100°C
	Inside dimensions \| mm	W 400 x D 500 x H 300
	Outside dimensions \| mm	W 760 x D 840 x H 800
	Volume \| l	60 l
	Power \| kW	9,6 kW
	Voltage \| V	400 3/N V

PDF Download for this category:

Technical specifications

Chamber Furnaces KLS 05/12 – KLS 60/12

Working temperatures up to 1200°C

PDF Download for this category:

Technical specifications

Previous Next KLS 05/12 KLS 10/12 KLS 15/12 KLS 30/12 KLS 45/12 KLS 60/12

1
2
3
4
5
6

Next model

Technical specifications
	Model	KLS 05/12
	Max. temperature \| C°	1200°C
	Inside dimensions \| mm	W 200 x D 250 x H 140
	Outside dimensions \| mm	W 550 x D 580 x H 650
	Volume \| l	7 l
	Power \| kW	2,0 kW
	Voltage \| V	230 1/N V

Next model

Technical specifications
	Model	KLS 10/12
	Max. temperature \| C°	1200°C
	Inside dimensions \| mm	W 200 x D 250 x H 200
	Outside dimensions \| mm	W 560 x D 640 x H 720
	Volume \| l	10 l
	Power \| kW	3,6 kW
	Voltage \| V	230 1/N V

Next model

Technical specifications
	Model	KLS 15/12
	Max. temperature \| C°	1200°C
	Inside dimensions \| mm	W 220 x D 300 x H 230
	Outside dimensions \| mm	W 560 x D 640 x H 720
	Volume \| l	15 l
	Power \| kW	3,6 kW
	Voltage \| V	230 1/N V

Next model

Technical specifications
	Model	KLS 30/12
	Max. temperature \| C°	1200°C
	Inside dimensions \| mm	W 280 x D 380 x H 280
	Outside dimensions \| mm	W 590 x D 690 x H 790
	Volume \| l	30 l
	Power \| kW	6 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KLS 45/12
	Max. temperature \| C°	1200°C
	Inside dimensions \| mm	W 300 x D 500 x H 300
	Outside dimensions \| mm	W 660 x D 810 x H 820
	Volume \| l	45 l
	Power \| kW	7,5 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KLS 60/12
	Max. temperature \| C°	1200°C
	Inside dimensions \| mm	W 400 x D 500 x H 300
	Outside dimensions \| mm	W 760 x D 840 x H 800
	Volume \| l	60 l
	Power \| kW	9,6 kW
	Voltage \| V	400 3/N V

PDF Download for this category:

Technical specifications

Chamber Furnaces KLS 05/13 – KLS 60/13

Working temperatures up to 1300°C

PDF Download for this category:

Technical specifications

Previous Next KLS 05/13 KLS 10/13 KLS 15/13 KLS 30/13 KLS 45/13 KLS 60/13

1
2
3
4
5
6

Next model

Technical specifications
	Model	KLS 05/13
	Max. temperature \| C°	1300°C
	Inside dimensions \| mm	W 200 x D 250 x H 140
	Outside dimensions \| mm	W 550 x D 580 x H 650
	Volume \| l	7 l
	Power \| kW	2,0 kW
	Voltage \| V	230 1/N V

Next model

Technical specifications
	Model	KLS 10/13
	Max. temperature \| C°	1300°C
	Inside dimensions \| mm	W 200 x D 250 x H 200
	Outside dimensions \| mm	W 560 x D 640 x H 720
	Volume \| l	10 l
	Power \| kW	3,6 kW
	Voltage \| V	230 1/N V

Next model

Technical specifications
	Model	KLS 15/13
	Max. temperature \| C°	1300°C
	Inside dimensions \| mm	W 220 x D 300 x H 230
	Outside dimensions \| mm	W 560 x D 640 x H 720
	Volume \| l	15 l
	Power \| kW	3,6 kW
	Voltage \| V	230 1/N V

Next model

Technical specifications
	Model	KLS 30/13
	Max. temperature \| C°	1300°C
	Inside dimensions \| mm	W 280 x D 380 x H 280
	Outside dimensions \| mm	W 590 x D 690 x H 790
	Volume \| l	30 l
	Power \| kW	6,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KLS 45/13
	Max. temperature \| C°	1300°C
	Inside dimensions \| mm	W 200 x D 500 x H 300
	Outside dimensions \| mm	W 660 x D 810 x H 820
	Volume \| l	45 l
	Power \| kW	7,5 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KLS 60/13
	Max. temperature \| C°	1300°C
	Inside dimensions \| mm	W 400 x D 500 x H 300
	Outside dimensions \| mm	W 760 x D 840 x H 800
	Volume \| l	60 l
	Power \| kW	9,6 kW
	Voltage \| V	400 3/N V

PDF Download for this category:

Technical specifications

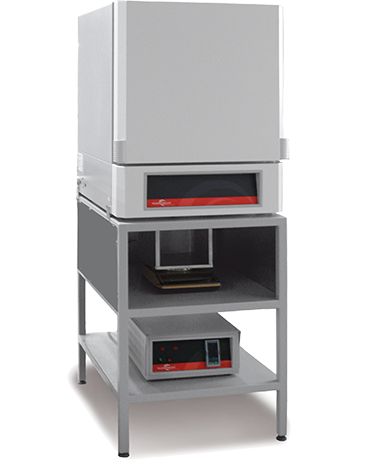

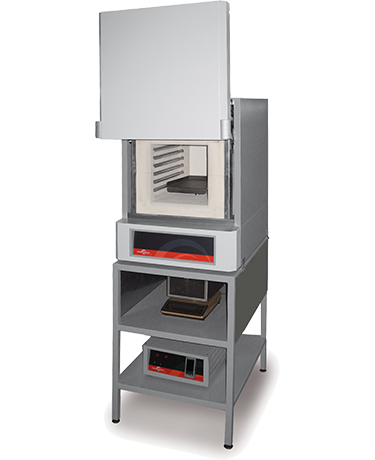

Laboratory Furnaces with Weighing System KLS 05/12/WS – KLS 60/12/WS

Working temperatures up to 1200°C

PDF Download for this category:

Technical specifications

Previous Next KLS 05/12/WS KLS 10/12/WS KLS 15/12/WS KLS 30/12/WS KLS 45/12/WS KLS 60/12/WS

1
2
3
4
5
6

Next model

Technical specifications
	Model	KLS 05/12/WS
	Max. temperature \| C°	1200°C
	Inside dimensions \| mm	W 200 x D 250 x H 140
	Outside dimensions \| mm	W 550 x D 580 x H 650
	Volume \| l	7 l
	Power \| kW	2,0 kW
	Voltage \| V	230 1/N V

Next model

Technical specifications
	Model	KLS 10/12/WS
	Max. temperature \| C°	1200°C
	Inside dimensions \| mm	W 200 x D 250 x H 200
	Outside dimensions \| mm	W 560 x D 640 x H 720
	Volume \| l	10 l
	Power \| kW	3,6 kW
	Voltage \| V	230 1/N V

Next model

Technical specifications
	Model	KLS 15/12/WS
	Max. temperature \| C°	1200°C
	Inside dimensions \| mm	W 220 x D 300 x H 230
	Outside dimensions \| mm	W 560 x D 640 x H 720
	Volume \| l	15 l
	Power \| kW	3,6 kW
	Voltage \| V	230 1/N V

Next model

Technical specifications
	Model	KLS 30/12/WS
	Max. temperature \| C°	1200°C
	Inside dimensions \| mm	W 280 x D 380 x H 280
	Outside dimensions \| mm	W 590 x D 690 x H 790
	Volume \| l	30 l
	Power \| kW	6,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KLS 45/12/WS
	Max. temperature \| C°	1200°C
	Inside dimensions \| mm	W 300 x D 500 x H 300
	Outside dimensions \| mm	W 660 x D 810 x H 820
	Volume \| l	45 l
	Power \| kW	7,5 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KLS 60/12/WS
	Max. temperature \| C°	1200°C
	Inside dimensions \| mm	W 400 x D 500 x H 300
	Outside dimensions \| mm	W 760 x D 840 x H 800
	Volume \| l	60 l
	Power \| kW	9,6 kW
	Voltage \| V	400 3/N V

PDF Download for this category:

Technical specifications

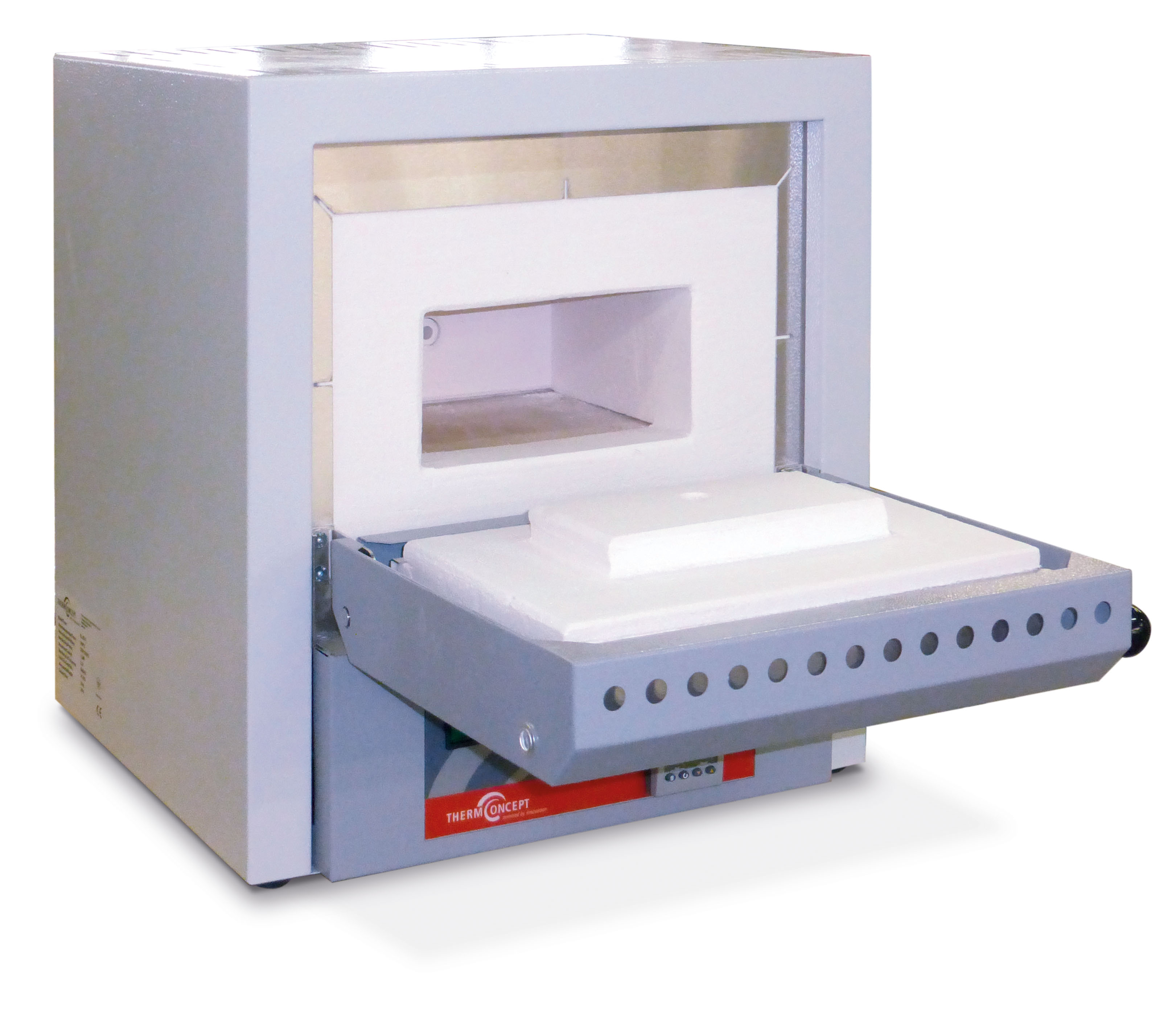

Muffle Furnaces KL 03/11 – KL 15/11

Working temperatures up to 1100°C

PDF Download for this category:

Technical specifications

Previous Next KL 03/11 KL 05/11 KL 09/11 KL 15/11

1
2
3
4

Next model

Technical specifications
	Model	KL 03/11
	Max. temperature \| C°	1100°C
	Inside dimensions \| mm	W 190 x D 140 x H 100
	Outside dimensions \| mm	W 437 x D 444 x H 489
	Weight \| kg	20 kg
	Volume \| l	2,7 l
	Power \| kW	1,2 kW
	Voltage \| V	230 1/N V

Next model

Technical specifications
	Model	KL 05/11
	Max. temperature \| C°	1100°C
	Inside dimensions \| mm	W 240 x D 170 x H 130
	Outside dimensions \| mm	W 487 x D 462 x H 519
	Weight \| kg	35 kg
	Volume \| l	5,3 l
	Power \| kW	2,4 kW
	Voltage \| V	230 1/N V

Next model

Technical specifications
	Model	KL 09/11
	Max. temperature \| C°	1100°C
	Inside dimensions \| mm	W 240 x D 260 x H 170
	Outside dimensions \| mm	W 492 x D 537 x H 558
	Weight \| kg	45 kg
	Volume \| l	10,6 l
	Power \| kW	3,0 kW
	Voltage \| V	230 1/N V

Next model

Technical specifications
	Model	KL 15/11
	Max. temperature \| C°	1100°C
	Inside dimensions \| mm	W 250 x D 370 x H 170
	Outside dimensions \| mm	W 499 x D 648 x H 558
	Weight \| kg	50 kg
	Volume \| l	15,7 l
	Power \| kW	3,5 kW
	Voltage \| V	230 1/N V

PDF Download for this category:

Technical specifications

Ashing Furnaces KLS 05/11/ASH – KLS 60/11/ASH

Working temperatures up to 1100°C

PDF Download for this category:

Technical specifications

Previous Next KLS 05/11/ASH KLS 10/11/ASH KLS 15/11/ASH KLS 30/11/ASH KLS 45/11/ASH KLS 60/11/ASH

1
2
3
4
5
6

Next model

Technical specifications
	Model	KLS 05/11/ASH
	Max. temperature \| C°	1100°C
	Inside dimensions \| mm	W 200 x D 250 x H 140
	Outside dimensions \| mm	W 550 x D 580 x H 650
	Volume \| l	7 l
	Power \| kW	2,0 kW
	Voltage \| V	230 1/N V

Next model

Technical specifications
	Model	KLS 10/11/ASH
	Max. temperature \| C°	1100°C
	Inside dimensions \| mm	W 200 x D 250 x H 200
	Outside dimensions \| mm	W 560 x D 640 x H 720
	Volume \| l	10 l
	Power \| kW	3,6 kW
	Voltage \| V	230 1/N V

Next model

Technical specifications
	Model	KLS 15/11/ASH
	Max. temperature \| C°	1100°C
	Inside dimensions \| mm	W 220 x D 300 x H 230
	Outside dimensions \| mm	W 560 x D 640 x H 720
	Volume \| l	15 l
	Power \| kW	3,6 kW
	Voltage \| V	230 1/N V

Next model

Technical specifications
	Model	KLS 30/11/ASH
	Max. temperature \| C°	1100°C
	Inside dimensions \| mm	W 280 x D 380 x H 280
	Outside dimensions \| mm	W 590 x D 690 x H 790
	Volume \| l	30 l
	Power \| kW	6,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KLS 45/11/ASH
	Max. temperature \| C°	1100°C
	Inside dimensions \| mm	W 300 x D 500 x H 300
	Outside dimensions \| mm	W 660 x D 810 x H 820
	Volume \| l	45 l
	Power \| kW	7,5 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KLS 60/11/ASH
	Max. temperature \| C°	1100°C
	Inside dimensions \| mm	W 400 x D 500 x H 300
	Outside dimensions \| mm	W 760 x D 840 x H 800
	Volume \| l	60 l
	Power \| kW	9,6 kW
	Voltage \| V	400 3/N V

PDF Download for this category:

Technical specifications

Ashing Furnaces KLS 05/12/ASH – KLS 60/12/ASH

Working temperatures up to 1200°C

PDF Download for this category:

Technical specifications

Previous Next KLS 05/12/ASH KLS 10/12/ASH KLS 15/12/ASH KLS 30/12/ASH KLS 45/12/ASH KLS 60/12/ASH

1
2
3
4
5
6

Next model

Technical specifications
	Model	KLS 05/12/ASH
	Max. temperature \| C°	1200°C
	Inside dimensions \| mm	W 200 x D 250 x H 140
	Outside dimensions \| mm	W 550 x D 580 x H 650
	Volume \| l	7 l
	Power \| kW	2,0 kW
	Voltage \| V	230 1/N V

Next model

Technical specifications
	Model	KLS 10/12/ASH
	Max. temperature \| C°	1200°C
	Inside dimensions \| mm	W 200 x D 250 x H 200
	Outside dimensions \| mm	W 560 x D 640 x H 720
	Volume \| l	10 l
	Power \| kW	3,6 kW
	Voltage \| V	230 1/N V

Next model

Technical specifications
	Model	KLS 15/12/ASH
	Max. temperature \| C°	1200°C
	Inside dimensions \| mm	W 220 x D 300 x H 230
	Outside dimensions \| mm	W 560 x D 640 x H 720
	Volume \| l	15 l
	Power \| kW	3,6 kW
	Voltage \| V	230 1/N V

Next model

Technical specifications
	Model	KLS 30/12/ASH
	Max. temperature \| C°	1200°C
	Inside dimensions \| mm	W 280 x D 380 x H 280
	Outside dimensions \| mm	W 590 x D 690 x H 790
	Volume \| l	30 l
	Power \| kW	6,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KLS 45/12/ASH
	Max. temperature \| C°	1200°C
	Inside dimensions \| mm	W 300 x D 500 x H 300
	Outside dimensions \| mm	W 660 x D 810 x H 820
	Volume \| l	45 l
	Power \| kW	7,5 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KLS 60/12/ASH
	Max. temperature \| C°	1200°C
	Inside dimensions \| mm	W 400 x D 500 x H 300
	Outside dimensions \| mm	W 760 x D 840 x H 800
	Volume \| l	60 l
	Power \| kW	9,6 kW
	Voltage \| V	400 3/N V
