Sintering furnaces up to 1800°C

PDF Download for this category:

Technical specifications

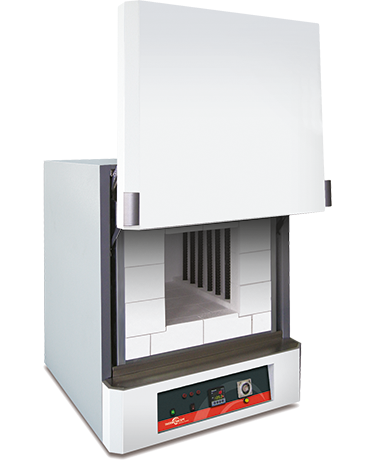

High temperature furnaces KLC 05/14 – KLC 30/14

Working temperatures up to 1400°C

PDF Download for this category:

Technical specifications

Previous Next KLC 05/14 KLC 10/14 KLC 15/14 KLC 30/14

1
2
3
4

Next model

Technical specifications
	Model	KLC 05/14
	Max. temperature \| C°	1400°C
	Inside dimensions \| mm	W 150 x D 250 x H 140
	Outside dimensions \| mm	W 550 x D 580 x H 650
	Volume \| l	5,3 l
	Power \| kW	3,8 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KLC 10/14
	Max. temperature \| C°	1400°C
	Inside dimensions \| mm	W 200 x D 250 x H 180
	Outside dimensions \| mm	W 560 x D 640 x H 720
	Volume \| l	9,0 l
	Power \| kW	5,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KLC 15/14
	Max. temperature \| C°	1400°C
	Inside dimensions \| mm	W 220 x D 310 x H 220
	Outside dimensions \| mm	W 590 x D 690 x H 790
	Volume \| l	15,0 l
	Power \| kW	7,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KLC 30/14
	Max. temperature \| C°	1400°C
	Inside dimensions \| mm	W 250 x D 440 x H 270
	Outside dimensions \| mm	W 660 x D 730 x H 800
	Volume \| l	9,7 l
	Power \| kW	11,5 kW
	Voltage \| V	400 3/N V

PDF Download for this category:

Technical specifications

High temperature furnaces KLC 05/15 – 30/15

Working temperatures up to 1500°C

PDF Download for this category:

Technical specifications

Previous Next KLC 05/15 KLC 10/15 KLC 15/15 KLC 30/15

1
2
3
4

Next model

Technical specifications
	Model	KLC 05/15
	Max. temperature \| C°	1500°C
	Inside dimensions \| mm	W 150 x D 250 x H 140
	Outside dimensions \| mm	W 550 x D 580 x H 650
	Volume \| l	5,3 l
	Power \| kW	4,8 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KLC 10/15
	Max. temperature \| C°	1500°C
	Inside dimensions \| mm	W 200 x D 250 x H 180
	Outside dimensions \| mm	W 560 x D 640 x H 720
	Volume \| l	9,0 l
	Power \| kW	6,6 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KLC 15/15
	Max. temperature \| C°	1500°C
	Inside dimensions \| mm	W 220 x D 310 x H 220
	Outside dimensions \| mm	W 590 x D 690 x H 790
	Volume \| l	15,0 l
	Power \| kW	7,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KLC 30/15
	Max. temperature \| C°	1500°C
	Inside dimensions \| mm	W 250 x D 440 x H 270
	Outside dimensions \| mm	W 660 x D 730 x H 800
	Volume \| l	29,7 l
	Power \| kW	11,5 kW
	Voltage \| V	400 3/N V

PDF Download for this category:

Technical specifications

High temperature furnaces KLC 05/16 – KLC 30/16

Working temperatures up to 1600°C

PDF Download for this category:

Technical specifications

Previous Next KLC 05/16 KLC 10/16 KLC 15/16 KLC 30/16

1
2
3
4

Next model

Technical specifications
	Model	KLC 05/16
	Max. temperature \| C°	1600°C
	Inside dimensions \| mm	W 150 x D 250 x H 140
	Outside dimensions \| mm	W 550 x D 580 x H 650
	Volume \| l	5,3 l
	Power \| kW	5,2 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KLC 10/16
	Max. temperature \| C°	1600°C
	Inside dimensions \| mm	W 200 x D 250 x H 180
	Outside dimensions \| mm	W 560 x D 640 x H 720
	Volume \| l	9,0 l
	Power \| kW	6,9 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KLC 15/16
	Max. temperature \| C°	1600°C
	Inside dimensions \| mm	W 220 x D 310 x H 220
	Outside dimensions \| mm	W 590 x D 690 x H 790
	Volume \| l	15,0 l
	Power \| kW	7,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KLC 30/16
	Max. temperature \| C°	1600°C
	Inside dimensions \| mm	W 250 x D 440 x H 270
	Outside dimensions \| mm	W 660 x D 730 x H 800
	Volume \| l	29,7 l
	Power \| kW	11,5 kW
	Voltage \| V	400 3/N V

PDF Download for this category:

Technical specifications

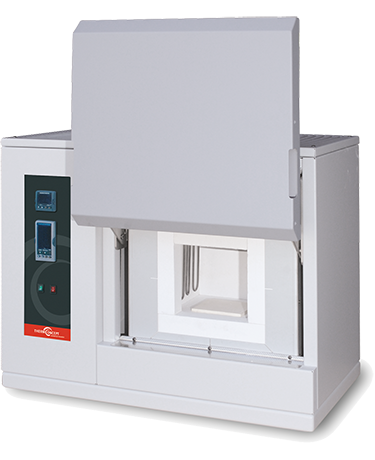

High temperature furnaces (1-10 liter) HTL 02/16 – HTL 20/16

Working temperatures up to 1600°C

PDF Download for this category:

Technical specifications

Previous Next HTL 02/16 HTL 04/16 HTL 10/16 HTL 16/16 HTL 20/16

1
2
3
4
5

Next model

Technical specifications
	Model	HTL 02/16
	Max. temperature \| C°	1600°C
	Inside dimensions \| mm	W 110 x D 120 x H 150
	Outside dimensions \| mm	W 740 x D 440 x H 630
	Weight \| kg	76 kg
	Volume \| l	2 l
	Power \| kW	1,5 kW
	Voltage \| V	230 1/N V

Next model

Technical specifications
	Model	HTL 04/16
	Max. temperature \| C°	1600°C
	Inside dimensions \| mm	W 150 x D 150 x H 150
	Outside dimensions \| mm	W 740 x D 440 x H 630
	Weight \| kg	83 kg
	Volume \| l	3,5 l
	Power \| kW	3,0 kW
	Voltage \| V	230 1/N V

Next model

Technical specifications
	Model	HTL 10/16
	Max. temperature \| C°	600°C
	Inside dimensions \| mm	W 200 x D 250 x H 200
	Outside dimensions \| mm	W 790 x D 540 x H 680
	Weight \| kg	97 kg
	Volume \| l	10 l
	Power \| kW	4,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	HTL 16/16
	Max. temperature \| C°	1600°C
	Inside dimensions \| mm	W 200 x D 300 x H 260
	Outside dimensions \| mm	W 830 x D 550 x H 735
	Weight \| kg	175 kg
	Volume \| l	15,6 l
	Power \| kW	8 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	HTL 20/16
	Max. temperature \| C°	1600°C
	Inside dimensions \| mm	W 250 x D 320 x H 260
	Outside dimensions \| mm	W 880 x D 570 x H 735
	Weight \| kg	210 kg
	Volume \| l	21 l
	Power \| kW	8 kW
	Voltage \| V	400 3/N V

PDF Download for this category:

Technical specifications

High temperature furnaces (1-10 liter) HTL 02/17 – HTL 20/17

Working temperatures up to 1750°C

PDF Download for this category:

Technical specifications

Previous Next HTL 02/17 HTL 04/17 HTL 10/17 HTL 16/17 HTL 20/17

1
2
3
4
5

Next model

Technical specifications
	Model	HTL 02/17
	Max. temperature \| C°	1750°C
	Inside dimensions \| mm	W 110 x D 120 x H 150
	Outside dimensions \| mm	W 740 x D 440 x H 630
	Weight \| kg	76 kg
	Volume \| l	2 l
	Power \| kW	1,5 kW
	Voltage \| V	230 1/N V

Next model

Technical specifications
	Model	HTL 04/17
	Max. temperature \| C°	1750°C
	Inside dimensions \| mm	W 150 x D 150 x H 150
	Outside dimensions \| mm	W 740 x D 440 x H 630
	Weight \| kg	83 kg
	Volume \| l	3,5 l
	Power \| kW	3,0 kW
	Voltage \| V	230 1/N V

Next model

Technical specifications
	Model	HTL 10/17
	Max. temperature \| C°	1750°C
	Inside dimensions \| mm	W 200 x D 250 x H 200
	Outside dimensions \| mm	W 790 x D 540 x H 680
	Weight \| kg	97 kg
	Volume \| l	10 l
	Power \| kW	4,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	HTL 16/17
	Max. temperature \| C°	1750°C
	Inside dimensions \| mm	W 200 x D 300 x H 260
	Outside dimensions \| mm	W 830 x D 550 x H 735
	Weight \| kg	175 kg
	Volume \| l	15,6 l
	Power \| kW	8 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	HTL 20/17
	Max. temperature \| C°	1750°C
	Inside dimensions \| mm	W 250 x D 320 x H 260
	Outside dimensions \| mm	W 880 x D 570 x H 735
	Weight \| kg	210 kg
	Volume \| l	21 l
	Power \| kW	8 kW
	Voltage \| V	400 3/N V

PDF Download for this category:

Technical specifications

High temperature furnaces (1-10 liter) HTL 02/18 – HTL 20/18

Working temperatures up to 1800°C

PDF Download for this category:

Technical specifications

Previous Next HTL 02/18 HTL 04/18 HTL 10/18 HTL 16/18 HTL 20/18

1
2
3
4
5

Next model

Technical specifications
	Model	HTL 02/18
	Max. temperature \| C°	1800°C
	Inside dimensions \| mm	W 110 x D 120 x H 150
	Outside dimensions \| mm	W 740 x D 440 x H 630
	Weight \| kg	76 kg
	Volume \| l	2 l
	Power \| kW	1,5 kW
	Voltage \| V	230 1/N V

Next model

Technical specifications
	Model	HTL 04/18
	Max. temperature \| C°	1800°C
	Inside dimensions \| mm	W 150 x D 150 x H 150
	Outside dimensions \| mm	W 740 x D 440 x H 630
	Weight \| kg	83 kg
	Volume \| l	3,5 l
	Power \| kW	3,0 kW
	Voltage \| V	230 1/N V

Next model

Technical specifications
	Model	HTL 10/18
	Max. temperature \| C°	1800°C
	Inside dimensions \| mm	W 200 x D 250 x H 200
	Outside dimensions \| mm	W 790 x D 540 x H 680
	Weight \| kg	97 kg
	Volume \| l	10 l
	Power \| kW	4,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	HTL 16/18
	Max. temperature \| C°	1800°C
	Inside dimensions \| mm	W 200 x D 300 x H 260
	Outside dimensions \| mm	W 830 x D 550 x H 735
	Weight \| kg	175 kg
	Volume \| l	15,6 l
	Power \| kW	8 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	HTL 20/18
	Max. temperature \| C°	1800°C
	Inside dimensions \| mm	W 250 x D 320 x H 260
	Outside dimensions \| mm	W 880 x D 570 x H 735
	Weight \| kg	210 kg
	Volume \| l	21 l
	Power \| kW	8 kW
	Voltage \| V	400 3/N V
