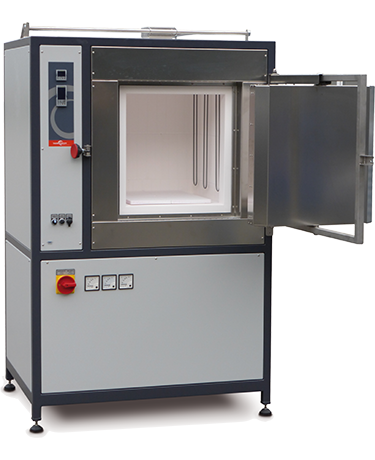

High temperature furnaces (16-70 liter) up to 1800°C

PDF Download for this category:

Technical specifications

High temperature furnaces (16-70 liter) HTK 16/16 – HTK 70/16

Working temperatures up to 1600°C

PDF Download for this category:

Technical specifications

Previous Next HTK 16/16 HTK 20/16 HTK 40/16 HTK 50/16 HTK 70/16

1
2
3
4
5

Next model

Technical specifications
	Model	HTK 16/16
	Max. temperature \| C°	1600°C
	Inside dimensions \| mm	W 200 x D 300 x H 260
	Outside dimensions \| mm	W 820 x D 655 x H 1570
	Weight \| kg	285 kg
	Volume \| l	15,6 l
	Power \| kW	8,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	HTK 20/16
	Max. temperature \| C°	1600°C
	Inside dimensions \| mm	W 250 x D 320 x H 260
	Outside dimensions \| mm	W 870 x D 675 x H 1570
	Weight \| kg	295 kg
	Volume \| l	21 l
	Power \| kW	8,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	HTK 40/16
	Max. temperature \| C°	1600°C
	Inside dimensions \| mm	W 300 x D 350 x H 350
	Outside dimensions \| mm	W 920 x D 705 x H 1660
	Weight \| kg	375 kg
	Volume \| l	37 l
	Power \| kW	11,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	HTK 50/16
	Max. temperature \| C°	1600°C
	Inside dimensions \| mm	W 250 x D 550 x H 350
	Outside dimensions \| mm	W 870 x D 905 x H 1660
	Weight \| kg	655 kg
	Volume \| l	48 l
	Power \| kW	18,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	HTK 70/16
	Max. temperature \| C°	1600°C
	Inside dimensions \| mm	W 400 x D 400 x H 400
	Outside dimensions \| mm	W 1020 x D 755 x H 1710
	Weight \| kg	545 kg
	Volume \| l	64 l
	Power \| kW	12,0 kW
	Voltage \| V	400 3/N V

PDF Download for this category:

Technical specifications

High temperature furnaces (16-70 liter) HTK 16/17 – HTK 70/17

Working temperatures up to 1750°C

PDF Download for this category:

Technical specifications

Previous Next HTK 16/17 HTK 20/17 HTK 40/17 HTK 50/17 HTK 70/17

1
2
3
4
5

Next model

Technical specifications
	Model	HTK 16/17
	Max. temperature \| C°	1750°C
	Inside dimensions \| mm	W 200 x D 300 x H 260
	Outside dimensions \| mm	W 820 x D 655 x H 1570
	Weight \| kg	285 kg
	Volume \| l	15,6 l
	Power \| kW	8,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	HTK 20/17
	Max. temperature \| C°	1750°C
	Inside dimensions \| mm	W 250 x D 320 x H 260
	Outside dimensions \| mm	W 870 x D 675 x H 1570
	Weight \| kg	295 kg
	Volume \| l	21 l
	Power \| kW	8,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	HTK 40/17
	Max. temperature \| C°	1750°C
	Inside dimensions \| mm	W 300 x D 350 x H 350
	Outside dimensions \| mm	W 920 x D 705 x H 1660
	Weight \| kg	375 kg
	Volume \| l	37 l
	Power \| kW	11,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	HTK 50/17
	Max. temperature \| C°	1750°C
	Inside dimensions \| mm	W 250 x D 550 x H 350
	Outside dimensions \| mm	W 870 x D 905 x H 1660
	Weight \| kg	655 kg
	Volume \| l	48 l
	Power \| kW	18,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	HTK 70/17
	Max. temperature \| C°	1750°C
	Inside dimensions \| mm	W 400 x D 400 x H 400
	Outside dimensions \| mm	W 1020 x D 755 x H 1710
	Weight \| kg	545 kg
	Volume \| l	64 l
	Power \| kW	12,0 kW
	Voltage \| V	400 3/N V

PDF Download for this category:

Technical specifications

High temperature furnaces (16-70 liter) HTK 16/18 – HTK 70/18

Working temperatures up to 1800°C

PDF Download for this category:

Technical specifications

Previous Next HTK 16/18 HTK 20/18 HTK 40/18 HTK 50/18 HTK 70/18

1
2
3
4
5

Next model

Technical specifications
	Model	HTK 16/18
	Max. temperature \| C°	1800°C
	Inside dimensions \| mm	W 200 x D 300 x H 260
	Outside dimensions \| mm	W 820 x D 655 x H 1570
	Weight \| kg	285 kg
	Volume \| l	15,6 l
	Power \| kW	8,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	HTK 20/18
	Max. temperature \| C°	1800°C
	Inside dimensions \| mm	W 250 x D 320 x H 260
	Outside dimensions \| mm	W 870 x D 675 x H 1570
	Weight \| kg	295 kg
	Volume \| l	21 l
	Power \| kW	8,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	HTK 40/18
	Max. temperature \| C°	1800°C
	Inside dimensions \| mm	W 300 x D 350 x H 350
	Outside dimensions \| mm	W 920 x D 705 x H 1660
	Weight \| kg	375 kg
	Volume \| l	37 l
	Power \| kW	11,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	HTK 50/18
	Max. temperature \| C°	1800°C
	Inside dimensions \| mm	W 250 x D 550 x H 350
	Outside dimensions \| mm	W 870 x D 905 x H 1660
	Weight \| kg	655 kg
	Volume \| l	48 l
	Power \| kW	18,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	HTK 70/18
	Max. temperature \| C°	1800°C
	Inside dimensions \| mm	W 400 x D 400 x H 400
	Outside dimensions \| mm	W 1020 x D 755 x H 1710
	Weight \| kg	545 kg
	Volume \| l	64 l
	Power \| kW	12,0 kW
	Voltage \| V	400 3/N V
