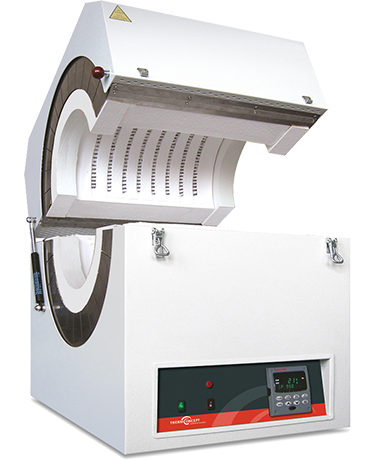

Split-type tube furnaces 1100°C

Split-type tube furnaces ROK 70/250/11 – ROK 300/400/11

Working temperatures up to 1100°C

PDF Download for this category:

Technical specifications
Next model
Technical specifications
Model Model ROK 70/250/11
Max. temperature Max. temperature | C° 1100°C
Outside dimensions Outside dimensions | mm W 400 x D 500 x H 510
Power Power | kW 1,6 kW
Voltage Voltage | V 230 1/N V
Pipe diameter Pipe diameter | mm ≤ 70 mm
Heated length Heated length | mm 250 mm
Temp. const. zone Temp. const. zone | mm 80 mm
Request now
Next model
Technical specifications
Model Model ROK 70/500/11
Max. temperature Max. temperature | C° 1100°C
Outside dimensions Outside dimensions | mm W 650 x D 500 x H 510
Power Power | kW 2,4 kW
Voltage Voltage | V 230 1/N V
Pipe diameter Pipe diameter | mm ≤ 70 mm
Heated length Heated length | mm 500 mm
Temp. const. zone Temp. const. zone | mm 160 mm
Request now
Next model
Technical specifications
Model Model ROK 100/250/11
Max. temperature Max. temperature | C° 1100°C
Outside dimensions Outside dimensions | mm W 400 x D 500 x H 510
Power Power | kW 2,4 kW
Voltage Voltage | V 230 1/N V
Pipe diameter Pipe diameter | mm ≤ 100 mm
Heated length Heated length | mm 250 mm
Temp. const. zone Temp. const. zone | mm 80 mm
Request now
Next model
Technical specifications
Model Model ROK 100/500/11
Max. temperature Max. temperature | C° 1100°C
Outside dimensions Outside dimensions | mm W 650 x D 500 x H 510
Power Power | kW 3,0 kW
Voltage Voltage | V 230 1/N V
Pipe diameter Pipe diameter | mm ≤ 100 mm
Heated length Heated length | mm 500 mm
Temp. const. zone Temp. const. zone | mm 160 mm
Request now
Next model
Technical specifications
Model Model ROK 150/250/11
Max. temperature Max. temperature | C° 1100°C
Outside dimensions Outside dimensions | mm W 400 x D 500 x H 510
Power Power | kW 3,0 kW
Voltage Voltage | V 230 1/N V
Pipe diameter Pipe diameter | mm ≤ 130 mm
Heated length Heated length | mm 250 mm
Temp. const. zone Temp. const. zone | mm 80 mm
Request now
Next model
Technical specifications
Model Model ROK 150/500/11
Max. temperature Max. temperature | C° 1100°C
Outside dimensions Outside dimensions | mm W 650 x D 500 x H 510
Power Power | kW 3,5 kW
Voltage Voltage | V 230 1/N V
Pipe diameter Pipe diameter | mm ≤ 130 mm
Heated length Heated length | mm 500 mm
Temp. const. zone Temp. const. zone | mm 160 mm
Request now
Next model
Technical specifications
Model Model ROK 200/250/11
Max. temperature Max. temperature | C° 1100°C
Outside dimensions Outside dimensions | mm W 400 x D 500 x H 510
Power Power | kW 3,0 kW
Voltage Voltage | V 230 1/N V
Pipe diameter Pipe diameter | mm ≤ 160 mm
Heated length Heated length | mm 250 mm
Temp. const. zone Temp. const. zone | mm 80 mm
Request now
Next model
Technical specifications
Model Model ROK 200/500/11
Max. temperature Max. temperature | C° 1100°C
Outside dimensions Outside dimensions | mm W 650 x D 500 x H 510
Power Power | kW 3,5 kW
Voltage Voltage | V 230 1/N V
Pipe diameter Pipe diameter | mm ≤ 160 mm
Heated length Heated length | mm 500 mm
Temp. const. zone Temp. const. zone | mm 160 mm
Request now
Next model
Technical specifications
Model Model ROK 250/400/11
Max. temperature Max. temperature | C° 1100°C
Outside dimensions Outside dimensions | mm W 555 x D 740 x H 710
Power Power | kW 6,0 kW
Voltage Voltage | V 400 3/N V
Pipe diameter Pipe diameter | mm ≤ 200 mm
Heated length Heated length | mm 400 mm
Temp. const. zone Temp. const. zone | mm 130 mm
Request now
Next model
Technical specifications
Model Model ROK 300/400/11
Max. temperature Max. temperature | C° 1100°C
Outside dimensions Outside dimensions | mm W 555 x D 740 x H 710
Power Power | kW 9,0 kW
Voltage Voltage | V 230 1/N V
Pipe diameter Pipe diameter | mm ≤ 250 mm
Heated length Heated length | mm 400 mm
Temp. const. zone Temp. const. zone | mm 130 mm
Request now
