Modular tube furnaces 1100 - 1300°C | Thermconcept Ofenlösungen

PDF Download for this category:

Technical specifications

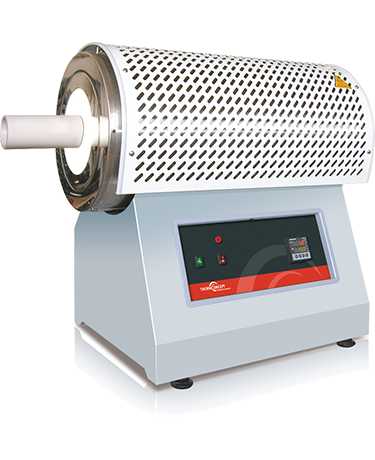

Modular tube furnaces ROS 20/250/12 – ROS 105/900/12

Working temperatures up to 1200°C

PDF Download for this category:

Technical specifications

Previous Next ROS 20/250/12 ROS 20/450/12 ROS 40/250/12 ROS 40/450/12 ROS 40/600/12 ROS 40/750/12 ROS 40/900/12 ROS 50/250/12 ROS 50/450/12 ROS 50/600/12 ROS 50/750/12 ROS 50/900/12 ROS 75/250/12 ROS 75/450/12 ROS 75/600/12 ROS 75/750/12 ROS 75/900/12 ROS 105/250/12 ROS 105/450/12 ROS 105/600/12 ROS 105/750/12 ROS 105/900/12

Next model

Technical specifications
	Model	ROS 20/250/12
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 350 x D 345 x H 500
	Power \| kW	0,8 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	20 mm
	Heated length \| mm	250 mm
	Temp. const. zone \| mm	80 mm

Next model

Technical specifications
	Model	ROS 20/450/12
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 500 x D 345 x H 500
	Power \| kW	0,9 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	20 mm
	Heated length \| mm	450 mm
	Temp. const. zone \| mm	130 mm

Next model

Technical specifications
	Model	ROS 40/250/12
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 350 x D 345 x H 500
	Power \| kW	1,0 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	40 mm
	Heated length \| mm	250 mm
	Temp. const. zone \| mm	80 mm

Next model

Technical specifications
	Model	ROS 40/450/12
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 500 x D 345 x H 500
	Power \| kW	1,2 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	40 mm
	Heated length \| mm	450 mm
	Temp. const. zone \| mm	130 mm

Next model

Technical specifications
	Model	ROS 40/600/12
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 650 x D 345 x H 500
	Power \| kW	1,5 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	40 mm
	Heated length \| mm	600 mm
	Temp. const. zone \| mm	200 mm

Next model

Technical specifications
	Model	ROS 40/750/12
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 800 x D 345 x H 500
	Power \| kW	2,0 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	40 mm
	Heated length \| mm	750 mm
	Temp. const. zone \| mm	250 mm

Next model

Technical specifications
	Model	ROS 40/900/12
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 950 x D 345 x H 500
	Power \| kW	2,4 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	40 mm
	Heated length \| mm	900 mm
	Temp. const. zone \| mm	300 mm

Next model

Technical specifications
	Model	ROS 50/250/12
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 350 x D 345 x H 500
	Power \| kW	1,1 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	50 mm
	Heated length \| mm	250 mm
	Temp. const. zone \| mm	80 mm

Next model

Technical specifications
	Model	ROS 50/450/12
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 500 x D 345 x H 500
	Power \| kW	1,2 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	50 mm
	Heated length \| mm	450 mm
	Temp. const. zone \| mm	130 mm

Next model

Technical specifications
	Model	ROS 50/600/12
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 650 x D 345 x H 500
	Power \| kW	1,4 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	50 mm
	Heated length \| mm	600 mm
	Temp. const. zone \| mm	200 mm

Next model

Technical specifications
	Model	ROS 50/750/12
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 800 x D 345 x H 500
	Power \| kW	2,2 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	50 mm
	Heated length \| mm	750 mm
	Temp. const. zone \| mm	250 mm

Next model

Technical specifications
	Model	ROS 50/900/12
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 950 x D 345 x H 500
	Power \| kW	3,0 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	50 mm
	Heated length \| mm	900 mm
	Temp. const. zone \| mm	300 mm

Next model

Technical specifications
	Model	ROS 75/250/12
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 350 x D 400 x H 645
	Power \| kW	1,1 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	75 mm
	Heated length \| mm	250 mm
	Temp. const. zone \| mm	80 mm

Next model

Technical specifications
	Model	ROS 75/450/12
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 500 x D 400 x H 645
	Power \| kW	1,6 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	75 mm
	Heated length \| mm	450 mm
	Temp. const. zone \| mm	130 mm

Next model

Technical specifications
	Model	ROS 75/600/12
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 650 x D 400 x H 645
	Power \| kW	2,2 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	75 mm
	Heated length \| mm	600 mm
	Temp. const. zone \| mm	200 mm

Next model

Technical specifications
	Model	ROS 75/750/12
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 800 x D 400 x H 645
	Power \| kW	2,6 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	75 mm
	Heated length \| mm	750 mm
	Temp. const. zone \| mm	250 mm

Next model

Technical specifications
	Model	ROS 75/900/12
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 950 x D 400 x H 645
	Power \| kW	3,3 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	75 mm
	Heated length \| mm	900 mm
	Temp. const. zone \| mm	300 mm

Next model

Technical specifications
	Model	ROS 105/250/12
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 350 x D 400 x H 685
	Power \| kW	2,2 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	105 mm
	Heated length \| mm	250 mm
	Temp. const. zone \| mm	80 mm

Next model

Technical specifications
	Model	ROS 105/450/12
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 500 x D 400 x H 685
	Power \| kW	2,5 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	105 mm
	Heated length \| mm	450 mm
	Temp. const. zone \| mm	130 mm

Next model

Technical specifications
	Model	ROS 105/600/12
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 650 x D 400 x H 685
	Power \| kW	3,3 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	105 mm
	Heated length \| mm	600 mm
	Temp. const. zone \| mm	200 mm

Next model

Technical specifications
	Model	ROS 105/750/12
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 800 x D 400 x H 685
	Power \| kW	3,5 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	105 mm
	Heated length \| mm	750 mm
	Temp. const. zone \| mm	250 mm

Next model

Technical specifications
	Model	ROS 105/900/12
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 950 x D 400 x H 685
	Power \| kW	3,6 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	105 mm
	Heated length \| mm	900 mm
	Temp. const. zone \| mm	300 mm

PDF Download for this category:

Technical specifications

Modular tube furnaces (3 zones) ROS 40/600/12-3z – ROS 105/900/12-3z

Working temperatures up to 1200°C

PDF Download for this category:

Technical specifications

Previous Next ROS 40/600/12-3z ROS 40/750/12-3z ROS 40/900/12-3z ROS 50/600/12-3z ROS 50/750/12-3z ROS 50/900/12-3z ROS 75/600/12-3z ROS 75/750/12-3z ROS 75/900/12-3z ROS 105/600/12-3z ROS 105/750/12-3z ROS 105/900/12-3z

Next model

Technical specifications
	Model	ROS 40/600/12-3z
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 650 x D 345 x H 500
	Power \| kW	1,5 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	40 mm
	Heated length \| mm	600 mm
	Temp. const. zone \| mm	300 mm

Next model

Technical specifications
	Model	ROS 40/750/12-3z
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 800 x D 345 x H 500
	Power \| kW	2,0 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	40 mm
	Heated length \| mm	750 mm
	Temp. const. zone \| mm	375 mm

Next model

Technical specifications
	Model	ROS 40/900/12-3z
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 950 x D 345 x H 500
	Power \| kW	2,4 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	40 mm
	Heated length \| mm	900 mm
	Temp. const. zone \| mm	450 mm

Next model

Technical specifications
	Model	ROS 50/600/12-3z
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 650 x D 345 x H 500
	Power \| kW	1,4 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	50 mm
	Heated length \| mm	600 mm
	Temp. const. zone \| mm	300 mm

Next model

Technical specifications
	Model	ROS 50/750/12-3z
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 800 x D 345 x H 500
	Power \| kW	2,2 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	50 mm
	Heated length \| mm	750 mm
	Temp. const. zone \| mm	375 mm

Next model

Technical specifications
	Model	ROS 50/900/12-3z
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 950 x D 345 x H 500
	Power \| kW	3,0 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	50 mm
	Heated length \| mm	900 mm
	Temp. const. zone \| mm	450 mm

Next model

Technical specifications
	Model	ROS 75/600/12-3z
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 650 x D 400 x H 645
	Power \| kW	2,2 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	75 mm
	Heated length \| mm	600 mm
	Temp. const. zone \| mm	300 mm

Next model

Technical specifications
	Model	ROS 75/750/12-3z
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 800 x D 400 x H 645
	Power \| kW	2,6 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	75 mm
	Heated length \| mm	750 mm
	Temp. const. zone \| mm	375 mm

Next model

Technical specifications
	Model	ROS 75/900/12-3z
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 950 x D 400 x H 645
	Power \| kW	3,3 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	75 mm
	Heated length \| mm	900 mm
	Temp. const. zone \| mm	450 mm

Next model

Technical specifications
	Model	ROS 105/600/12-3z
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 650 x D 400 x H 685
	Power \| kW	3,3 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	105 mm
	Heated length \| mm	600 mm
	Temp. const. zone \| mm	300 mm

Next model

Technical specifications
	Model	ROS 105/750/12-3z
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 800 x D 400 x H 685
	Power \| kW	3,5 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	105 mm
	Heated length \| mm	750 mm
	Temp. const. zone \| mm	375 mm

Next model

Technical specifications
	Model	ROS 105/900/12-3z
	Max. temperature \| C°	1200°C
	Outside dimensions \| mm	W 950 x D 400 x H 685
	Power \| kW	3,6 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	105 mm
	Heated length \| mm	900 mm
	Temp. const. zone \| mm	450 mm
