Tube furnaces 1200°C

PDF Download for this category:

Technical specifications

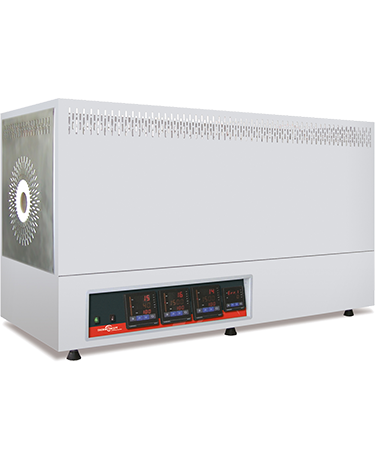

Tube furnaces ROT 60/300/12 – ROT 120/600/12

Working temperatures up to 1200°C

PDF Download for this category:

Technical specifications

Previous Next ROT 60/300/12 ROT 60/450/12 ROT 60/600/12 ROT 85/300/12 ROT 85/450/12 ROT 85/600/12 ROT 120/300/12 ROT 120/450/12 ROT 120/600/12

1
2
3
4
5
6
7
8
9

Next model

Technical specifications
	Model	ROT 60/300/12
	Max. temperature \| C°	1200°C
	Power \| kW	3,0 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	≤ 60 mm
	Heated length \| mm	300 mm
	Temp. const. zone \| mm	100 mm

Request now

Next model

Technical specifications
	Model	ROT 60/450/12
	Max. temperature \| C°	1200°C
	Power \| kW	3,6 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	≤ 60 mm
	Heated length \| mm	450 mm
	Temp. const. zone \| mm	150 mm

Request now

Next model

Technical specifications
	Model	ROT 60/600/12
	Max. temperature \| C°	1200°C
	Power \| kW	3,6 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	≤ 60 mm
	Heated length \| mm	600 mm
	Temp. const. zone \| mm	200 mm

Request now

Next model

Technical specifications
	Model	ROT 85/300/12
	Max. temperature \| C°	1200°C
	Power \| kW	3,0 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	≤ 85 mm
	Heated length \| mm	300 mm
	Temp. const. zone \| mm	100 mm

Request now

Next model

Technical specifications
	Model	ROT 85/450/12
	Max. temperature \| C°	1200°C
	Power \| kW	3,6 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	≤ 85 mm
	Heated length \| mm	450 mm
	Temp. const. zone \| mm	150 mm

Request now

Next model

Technical specifications
	Model	ROT 85/600/12
	Max. temperature \| C°	1200°C
	Power \| kW	3,6 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	≤ 85 mm
	Heated length \| mm	600 mm
	Temp. const. zone \| mm	200 mm

Request now

Next model

Technical specifications
	Model	ROT 120/300/12
	Max. temperature \| C°	1200°C
	Power \| kW	5,0 kW
	Voltage \| V	400 3/N V
	Pipe diameter \| mm	≤ 120 mm
	Heated length \| mm	300 mm
	Temp. const. zone \| mm	100 mm

Request now

Next model

Technical specifications
	Model	ROT 120/450/12
	Max. temperature \| C°	1200°C
	Power \| kW	5,0 kW
	Voltage \| V	400 3/N V
	Pipe diameter \| mm	≤ 120 mm
	Heated length \| mm	450 mm
	Temp. const. zone \| mm	150 mm

Request now

Next model

Technical specifications
	Model	ROT 120/600/12
	Max. temperature \| C°	1200°C
	Power \| kW	7,5 kW
	Voltage \| V	400 3/N V
	Pipe diameter \| mm	≤ 120 mm
	Heated length \| mm	600 mm
	Temp. const. zone \| mm	200 mm

Request now

PDF Download for this category:

Technical specifications

Tube furnaces ROT 60/300/13 – ROT 120/600/13

Working temperatures up to 1300°C

PDF Download for this category:

Technical specifications

Previous Next ROT 60/300/13 ROT 60/450/13 ROT 60/600/13 ROT 85/300/13 ROT 85/450/13 ROT 85/600/13 ROT 120/300/13 ROT 120/450/13 ROT 120/600/13

1
2
3
4
5
6
7
8
9

Next model

Technical specifications
	Model	ROT 60/300/13
	Max. temperature \| C°	1300°C
	Power \| kW	3,6 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	≤ 60 mm
	Heated length \| mm	300 mm
	Temp. const. zone \| mm	100 mm

Request now

Next model

Technical specifications
	Model	ROT 60/450/13
	Max. temperature \| C°	1300°C
	Power \| kW	3,6 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	≤ 60 mm
	Heated length \| mm	450 mm
	Temp. const. zone \| mm	150 mm

Request now

Next model

Technical specifications
	Model	ROT 60/600/13
	Max. temperature \| C°	1300°C
	Power \| kW	3,6 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	≤ 60 mm
	Heated length \| mm	600 mm
	Temp. const. zone \| mm	200 mm

Request now

Next model

Technical specifications
	Model	ROT 85/300/13
	Max. temperature \| C°	1300°C
	Power \| kW	3,6 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	≤ 85 mm
	Heated length \| mm	300 mm
	Temp. const. zone \| mm	100 mm

Request now

Next model

Technical specifications
	Model	ROT 85/450/13
	Max. temperature \| C°	1300°C
	Power \| kW	3,6 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	≤ 85 mm
	Heated length \| mm	450 mm
	Temp. const. zone \| mm	150 mm

Request now

Next model

Technical specifications
	Model	ROT 85/600/13
	Max. temperature \| C°	1300°C
	Power \| kW	3,6 kW
	Voltage \| V	230 1/N V
	Pipe diameter \| mm	≤ 85 mm
	Heated length \| mm	600 mm
	Temp. const. zone \| mm	200 mm

Request now

Next model

Technical specifications
	Model	ROT 120/300/13
	Max. temperature \| C°	1300°C
	Power \| kW	5,0 kW
	Voltage \| V	400 3/N V
	Pipe diameter \| mm	≤ 120 mm
	Heated length \| mm	300 mm
	Temp. const. zone \| mm	100 mm

Request now

Next model

Technical specifications
	Model	ROT 120/450/13
	Max. temperature \| C°	1300°C
	Power \| kW	5,0 kW
	Voltage \| V	400 3/N V
	Pipe diameter \| mm	≤ 120 mm
	Heated length \| mm	450 mm
	Temp. const. zone \| mm	150 mm

Request now

Next model

Technical specifications
	Model	ROT 120/600/13
	Max. temperature \| C°	1300°C
	Power \| kW	7,5 kW
	Voltage \| V	400 3/N V
	Pipe diameter \| mm	≤ 120 mm
	Heated length \| mm	600 mm
	Temp. const. zone \| mm	200 mm

Request now
