Fuel heated tilting crucible furnaces

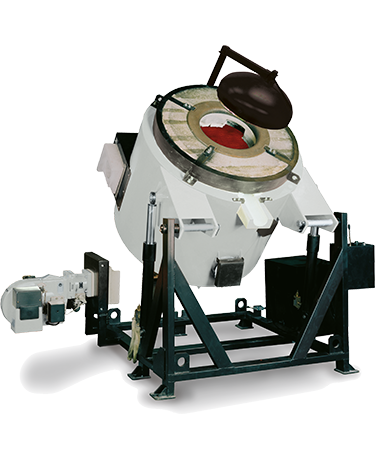

Tilting Crucible Furnaces TAG 180/12/K - TAG 1000/12/K

Working temperatures up to 1200°C

PDF Download for this category:

Technical specifications

  • Oil- or gas-fired
  • Rugged furnace design
  • Safe, reliable pouring using 2 hydraulic cylinders with end bearing dampers on tilting frame
  • Precision dosing at every tilting angle
  • High melting rate
  • Low energy consumption of approx. 1.3 kWh / kg Al
  • Very low heat loss due to excellent thermal insulation
  • High-quality burner technology
  • Uniform heating of melt and crucible > Good metal quality and crucible life
  • Heat-resistant cast-iron ring on removable refractory concrete cover protects crucible against mechanical damage and allows easy access for crucible change
  • Emergency outlet drain
  • Optional operating platform
  • Exhaust discharged over rim of crucible, side exhaust available as optional extra

Next model
Technical specifications
Model Model TAG 180/12/K
Max. temperature Max. temperature | C° 1200°C
Outside dimensions Outside dimensions | mm W 2100 x D 1600 x H 1350
Power of burner Power of burner | kW 300 kW
Incl. crucible Incl. crucible TP 287
Capacity Capacity 180 kg Al
Optimum melting rate Optimum melting rate approx. 220 kg Al/h
Practial melting rate Practial melting rate approx. 175 kg Al/h
Next model
Technical specifications
Model Model TAG 330/12/K
Max. temperature Max. temperature | C° 1200°C
Outside dimensions Outside dimensions | mm W 2200 x D 1700 x H 1530
Power of burner Power of burner | kW 300 kW
Incl. crucible Incl. crucible TP 412
Capacity Capacity 330 kg Al
Optimum melting rate Optimum melting rate approx. 240 kg Al/h
Practial melting rate Practial melting rate approx. 190 kg Al/h
Next model
Technical specifications
Model Model TAG 370/12/K
Max. temperature Max. temperature | C° 1200°C
Outside dimensions Outside dimensions | mm W 2200 x D 1700 x H 1630
Power of burner Power of burner | kW 300 kW
Incl. crucible Incl. crucible TP 412 H
Capacity Capacity 370 kg Al
Optimum melting rate Optimum melting rate approx. 260 kg Al/h
Practial melting rate Practial melting rate approx. 210 kg Al/h
Next model
Technical specifications
Model Model TAG 570/12/K
Max. temperature Max. temperature | C° 1200°C
Outside dimensions Outside dimensions | mm W 2400 x D 2100 x H 1670
Power of burner Power of burner | kW 390 kW
Incl. crucible Incl. crucible TP 587
Capacity Capacity 570 kg Al
Optimum melting rate Optimum melting rate approx. 400 kg Al/h
Practial melting rate Practial melting rate approx. 320 kg Al/h
Next model
Technical specifications
Model Model TAG 750/12/K
Max. temperature Max. temperature | C° 1200°C
Outside dimensions Outside dimensions | mm W 2500 x D 2250 x H 1770
Power of burner Power of burner | kW 450 kW
Incl. crucible Incl. crucible TBN 800
Capacity Capacity 750 kg Al
Optimum melting rate Optimum melting rate approx. 420 kg Al/h
Practial melting rate Practial melting rate approx. 335 kg Al/h
Next model
Technical specifications
Model Model TAG 1000/12/K
Max. temperature Max. temperature | C° 1200°C
Outside dimensions Outside dimensions | mm W 2500 x D 2250 x H 1950
Power of burner Power of burner | kW 450 kW
Incl. crucible Incl. crucible TBN 1000
Capacity Capacity 1000 kg Al
Optimum melting rate Optimum melting rate approx. 450 kg Al/h
Practial melting rate Practial melting rate approx. 360 kg Al/h

Tilting Crucible Furnaces TKG 400/14/K - TKG 600/14/K

Working temperatures up to 1400°C

PDF Download for this category:

Technical specifications

  • Oil- or gas-fired
  • Rugged furnace design
  • Safe, reliable pouring using 2 hydraulic cylinders with end bearing dampers on tilting frame
  • Precision dosing at every tilting angle
  • High melting rate
  • Low energy consumption of approx. 1.3 kWh / kg Al
  • Very low heat loss due to excellent thermal insulation
  • High-quality burner technology
  • Uniform heating of melt and crucible > Good metal quality and crucible life
  • Heat-resistant cast-iron ring on removable refractory concrete cover protects crucible against mechanical damage and allows easy access for crucible change
  • Emergency outlet drain
  • Optional operating platform
  • Exhaust discharged over rim of crucible, side exhaust available as optional extra

Next model
Technical specifications
Model Model TKG 400/14/K
Max. temperature Max. temperature | C° 1400°C
Outside dimensions Outside dimensions | mm W 2000 x D 1600 x H 1400
Power of burner Power of burner | kW 400 kW
Incl. crucible Incl. crucible TP 723
Capacity Capacity 400 kg Cu or 120 kg Al
Optimum melting rate Optimum melting rate approx. 330 kg Cu/h
Practial melting rate Practial melting rate approx. 200 kg Cu/h
Next model
Technical specifications
Model Model TKG 500/14/K
Max. temperature Max. temperature | C° 1400°C
Outside dimensions Outside dimensions | mm W 2000 x D 1600 x H 1400
Power of burner Power of burner | kW 400 kW
Incl. crucible Incl. crucible TP 843
Capacity Capacity 500 kg Cu or 150 kg Al
Optimum melting rate Optimum melting rate approx. 360 kg Cu/h
Practial melting rate Practial melting rate approx. 220 kg Cu/h
Next model
Technical specifications
Model Model TKG 600/14/K
Max. temperature Max. temperature | C° 1400°C
Outside dimensions Outside dimensions | mm W 2100 x D 1600 x H 1400
Power of burner Power of burner | kW 400 kW
Incl. crucible Incl. crucible TP 287
Capacity Capacity 600 kg Cu or 180 kg Al
Optimum melting rate Optimum melting rate approx. 380 kg Cu/h
Practial melting rate Practial melting rate approx. 240 kg Cu/h
