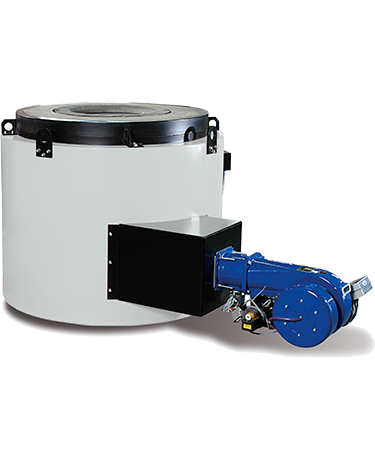

Crucible Furnaces TAG 200/12 - TAG 600/12

Working temperatures up to 1200°C

PDF Download for this category:

Technical specifications

  • Oil- or gas-fired
  • Rugged furnace design
  • High melting rates
  • Low energy consumption of approx. 1.3 kWh / kg Al
  • Very low heat loss due to excellent thermal insulation
  • High-quality burner technology > Good metal quality and crucible life
  • Uniform heating of melt and crucible
  • Heat-resistant cast-iron ring on removable refractory concrete co-ver protects crucible against mechanical damage and allows easy access for crucible change
  • Emergency outlet drain
  • Optional operating platform
  • Side exhaust for models TAG 200/12 – TAG 600/12
  • Exhaust discharged over rim of crucible for models TAG 100/14 – TAG 600/14 (side exhaust available as optional extra)

Next model
Technical specifications
Model Model TAG 200/12
Max. temperature Max. temperature | 1200°C
Outside dimensions Outside dimensions | mm W 2100 x D 1300 x H 1100
Power of burner Power of burner | kW 180 kW
Suitable for crucible Suitable for crucible BU 200
Capacity Capacity 200 kg Al
Optimum melting rate Optimum melting rate approx. 140 kg Al/h
Practial melting rate Practial melting rate approx. 110 – 115 kg Al/h
Next model
Technical specifications
Model Model TAG 250/12
Max. temperature Max. temperature | 1200°C
Outside dimensions Outside dimensions | mm W 2100 x D 1300 x H 1100
Power of burner Power of burner | kW 180 kW
Suitable for crucible Suitable for crucible BU 250
Capacity Capacity 250 kg Al
Optimum melting rate Optimum melting rate approx. 140 kg Al/h
Practial melting rate Practial melting rate approx. 110 – 115 kg Al/h
Next model
Technical specifications
Model Model TAG 300/12
Max. temperature Max. temperature | 1200°C
Outside dimensions Outside dimensions | mm W 2100 x D 1300 x H 1300
Power of burner Power of burner | kW 210 kW
Suitable for crucible Suitable for crucible BU 300
Capacity Capacity 300 kg Al
Optimum melting rate Optimum melting rate approx. 150 kg Al/h
Practial melting rate Practial melting rate approx. 120 kg Al/h
Next model
Technical specifications
Model Model TAG 350/12
Max. temperature Max. temperature | 1200°C
Outside dimensions Outside dimensions | mm W 2100 x D 1300 x H 1300
Power of burner Power of burner | kW 300 kW
Suitable for crucible Suitable for crucible BU 350
Capacity Capacity 350 kg Al
Optimum melting rate Optimum melting rate approx. 220 kg Al/h
Practial melting rate Practial melting rate approx. 175 kg Al/h
Next model
Technical specifications
Model Model TAG 500/12
Max. temperature Max. temperature | 1200°C
Outside dimensions Outside dimensions | mm W 2250 x D 1450 x H 1100
Power of burner Power of burner | kW 300 kW
Suitable for crucible Suitable for crucible BU 500
Capacity Capacity 500 kg Al
Optimum melting rate Optimum melting rate approx. 270 kg Al/h
Practial melting rate Practial melting rate approx. 215 kg Al/h
Next model
Technical specifications
Model Model TAG 600/12
Max. temperature Max. temperature | 1200°C
Outside dimensions Outside dimensions | mm W 2300 x D 1600 x H 1450
Power of burner Power of burner | kW 390 kW
Suitable for crucible Suitable for crucible BU 600
Capacity Capacity 600 kg Al
Optimum melting rate Optimum melting rate approx. 330 kg Al/h
Practial melting rate Practial melting rate approx. 265 kg Al/h

Crucible Furnaces TAG 100/14 - TAG 600/14

Working temperatures up to 1400°C

PDF Download for this category:

Technical specifications

  • Oil- or gas-fired
  • Rugged furnace design
  • High melting rates
  • Low energy consumption of approx. 1.3 kWh / kg Al
  • Very low heat loss due to excellent thermal insulation
  • High-quality burner technology > Good metal quality and crucible life
  • Uniform heating of melt and crucible
  • Heat-resistant cast-iron ring on removable refractory concrete co-ver protects crucible against mechanical damage and allows easy access for crucible change
  • Emergency outlet drain
  • Optional operating platform
  • Side exhaust for models TAG 200/12 – TAG 600/12
  • Exhaust discharged over rim of crucible for models TAG 100/14 – TAG 600/14 (side exhaust available as optional extra)

Next model
Technical specifications
Model Model TAG 100/14
Max. temperature Max. temperature | 1400°C
Outside dimensions Outside dimensions | mm W 1900 x D 1100 x H 700
Power of burner Power of burner | kW 210 kW
Suitable for crucible Suitable for crucible A 100
Capacity Capacity 100 kg Cu or 30 kg Al
Optimum melting rate Optimum melting rate approx. 90 kg Cu/h
Practial melting rate Practial melting rate approx. 55 kg Cu/h
Next model
Technical specifications
Model Model TAG 150/14
Max. temperature Max. temperature | 1400°C
Outside dimensions Outside dimensions | mm W 1950 x D 1100 x H 800
Power of burner Power of burner | kW 210 kW
Suitable for crucible Suitable for crucible A 150
Capacity Capacity 150 kg Cu or 45 kg Al
Optimum melting rate Optimum melting rate approx. 100 kg Cu/h
Practial melting rate Practial melting rate approx. 60 kg Cu/h
Next model
Technical specifications
Model Model TAG 400/14
Max. temperature Max. temperature | 1400°C
Outside dimensions Outside dimensions | mm W 2100 x D 1300 x H 1100
Power of burner Power of burner | kW 300 kW
Suitable for crucible Suitable for crucible A 400
Capacity Capacity 400 kg Cu or 120 kg Al
Optimum melting rate Optimum melting rate approx. 300 kg Cu/h
Practial melting rate Practial melting rate approx. 180 kg Cu/h
Next model
Technical specifications
Model Model TAG 500/14
Max. temperature Max. temperature | 1400°C
Outside dimensions Outside dimensions | mm W 2100 x D 1300 x H 1100
Power of burner Power of burner | kW 320 kW
Suitable for crucible Suitable for crucible A 500
Capacity Capacity 500 kg Cu or 150 kg Al
Optimum melting rate Optimum melting rate ca. 320 kg Cu/h
Practial melting rate Practial melting rate ca. 200 kg Cu/h
Next model
Technical specifications
Model Model TAG 600/14
Max. temperature Max. temperature | 1400°C
Outside dimensions Outside dimensions | mm W 2100 x D 1300 x H 1300
Power of burner Power of burner | kW 320 kW
Suitable for crucible Suitable for crucible A 600
Capacity Capacity 600 kg Cu or 180 kg Al
Optimum melting rate Optimum melting rate ca. 320 kg Cu/h
Practial melting rate Practial melting rate ca. 200 kg Cu/h
