Electrically heated tilting crucible furnaces

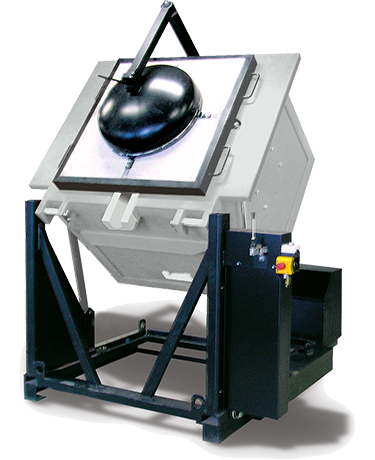

Tilting Crucible Furnaces TA 30/12/K - TA 800/12/K

Working temperatures up to 1200°C

PDF Download for this category:

Technical specifications

  • Rugged casing construction
  • Safe, reliable pouring using 2 hydraulic cylinders with end bearing dampers on tilting frame
  • Precision dosing at every tilting angle
  • Friendly working conditions due to very low outer casing temperature
  • Low energy consumption, low operating costs due to excellent thermal insulation (approx. 0.4 kWh/kg aluminium)
  • Very low heat loss
  • High-quality heating elements wound on ceramic tubes > Free heat radiation onto the crucible, low energy consumption, longer service life of heating elements
  • Uniform heating of melt and crucible due to heating from 3 sides, superb metal quality, good crucible life
  • Crucible protected by cover plate made of refractory concrete
  • Emergency outlet drain
  • Cable harness between control panel and furnace protected by flexible metal conduit, providing optimum protection against mechanical damage
  • Low maintenance cost

Next model
Technical specifications
Model Model TA 30/12/K
Max. temperature Max. temperature | C° 1200°C
Outside dimensions Outside dimensions | mm W 1540 x D 1300 x H 1160
Power rating Power rating | kW 18 kW
Incl. crucible Incl. crucible A 70 with long spout
Capacity Capacity 20 kg Al or 70 kg Cu
Optimum melting rate Optimum melting rate approx. 34 kg Al/h / 50 kg Cu/h
Practial melting rate Practial melting rate approx. 27 kg Al/h / 30 kg Cu/h
Request now
Next model
Technical specifications
Model Model TA 50/12/K
Max. temperature Max. temperature | C° 1200°C
Outside dimensions Outside dimensions | mm W 1600 x D 1400 x H 1250
Power rating Power rating | kW 20 kW
Incl. crucible Incl. crucible A 150 with long spout
Capacity Capacity 45 kg Al or 150 kg Cu
Optimum melting rate Optimum melting rate approx. 43 kg Al/h / 64 kg Cu/h
Practial melting rate Practial melting rate approx. 34 kg Al/h / 40 kg Cu/h
Request now
Next model
Technical specifications
Model Model TA 100/12/K
Max. temperature Max. temperature | C° 1200°C
Outside dimensions Outside dimensions | mm W 1850 x D 1550 x H 1270
Power rating Power rating | kW 26 kW
Incl. crucible Incl. crucible A 300 with long spout
Capacity Capacity 95 kg Al or 300 kg Cu
Optimum melting rate Optimum melting rate approx. 60 kg Al/h / 85 kg Cu/h
Practial melting rate Practial melting rate approx. 60 kg Al/h / 85 kg Cu/h
Request now
Next model
Technical specifications
Model Model TA 200/12/K
Max. temperature Max. temperature | C° 1200°C
Outside dimensions Outside dimensions | mm W 1950 x D 1600 x H 1400
Power rating Power rating | kW 54 kW
Incl. crucible Incl. crucible TP 287
Capacity Capacity 180 kg Al or 650 kg Cu
Optimum melting rate Optimum melting rate approx. 130 kg Al/h / 185 kg Cu/h
Practial melting rate Practial melting rate approx. 104 kg Al/h / 115 kg Cu/h
Request now
Next model
Technical specifications
Model Model TA 350/12/K
Max. temperature Max. temperature | C° 1200°C
Outside dimensions Outside dimensions | mm W 2000 x D 1650 x H 1460
Power rating Power rating | kW 67 kW
Incl. crucible Incl. crucible TP 412
Capacity Capacity 330 kg Al
Optimum melting rate Optimum melting rate approx. 160 kg Al/h
Practial melting rate Practial melting rate approx. 128 kg Al/h
Request now
Next model
Technical specifications
Model Model TA 600/12/K
Max. temperature Max. temperature | C° 1200°C
Outside dimensions Outside dimensions | mm W 2150 x D 1900 x H 1670
Power rating Power rating | kW 83 kW
Incl. crucible Incl. crucible TP 587
Capacity Capacity 570 kg Al
Optimum melting rate Optimum melting rate approx. 215 kg Al/h
Practial melting rate Practial melting rate approx. 170 kg Al/h
Request now
Next model
Technical specifications
Model Model TA 800/12/K
Max. temperature Max. temperature | C° 1200°C
Outside dimensions Outside dimensions | mm W 2250 x D 2000 x H 1670
Power rating Power rating | kW 103 kW
Incl. crucible Incl. crucible TBN 800
Capacity Capacity 750 kg Al
Optimum melting rate Optimum melting rate approx. 260 kg Al/h
Practial melting rate Practial melting rate approx. 210 kg Al/h
Request now

Tilting Crucible Furnaces TK 70/13/K - TK 500/13/K

Working temperatures up to 1300°C

PDF Download for this category:

Technical specifications

  • Rugged casing construction
  • Safe, reliable pouring using 2 hydraulic cylinders with end bearing dampers on tilting frame
  • Precision dosing at every tilting angle
  • Friendly working conditions due to very low outer casing temperature
  • Low energy consumption, low operating costs due to excellent thermal insulation (approx. 0.4 kWh/kg aluminium)
  • Very low heat loss
  • High-quality heating elements wound on ceramic tubes > Free heat radiation onto the crucible, low energy consumption, longer service life of heating elements
  • Uniform heating of melt and crucible due to heating from 3 sides, superb metal quality, good crucible life
  • Crucible protected by cover plate made of refractory concrete
  • Emergency outlet drain
  • Cable harness between control panel and furnace protected by flexible metal conduit, providing optimum protection against mechanical damage
  • Low maintenance cost

Next model
Technical specifications
Model Model TK 70/13/K
Max. temperature Max. temperature | C° 1300°C
Outside dimensions Outside dimensions | mm W 1540 x D 1300 x H 1160
Power rating Power rating | kW 18 kW
Incl. crucible Incl. crucible A 70 with long spout
Capacity Capacity 20 kg Al or 70 kg Cu
Optimum melting rate Optimum melting rate approx. 34 kg Al/h / 50 kg Cu/h
Practial melting rate Practial melting rate approx. 27 kg Al/h / 30 kg Cu/h
Request now
Next model
Technical specifications
Model Model TK 150/13/K
Max. temperature Max. temperature | C° 1300°C
Outside dimensions Outside dimensions | mm W 1600 x D 1400 x H 1250
Power rating Power rating | kW 20 kW
Incl. crucible Incl. crucible A 150 with long spout
Capacity Capacity 45 kg Al or 150 kg Cu
Optimum melting rate Optimum melting rate approx. 43 kg Al/h / 64 kg Cu/h
Practial melting rate Practial melting rate approx. 34 kg Al/h / 40 kg Cu/h
Request now
Next model
Technical specifications
Model Model TK 300/13/K
Max. temperature Max. temperature | C° 1300°C
Outside dimensions Outside dimensions | mm W 1850 x D 1550 x H 1270
Power rating Power rating | kW 26 kW
Incl. crucible Incl. crucible A 300 with long spout
Capacity Capacity 90 kg Al oder 300 kg Cu
Optimum melting rate Optimum melting rate approx. 60 kg Al/h / 85 kg Cu/h
Practial melting rate Practial melting rate approx. 48 kg Al/h / 50 kg Cu/h
Request now
Next model
Technical specifications
Model Model TK 500/13/K
Max. temperature Max. temperature | C° 1300°C
Outside dimensions Outside dimensions | mm W 1950 x D 1600 x H 1400
Power rating Power rating | kW 54 kW
Incl. crucible Incl. crucible TP 287
Capacity Capacity 180 kg Al or 600 kg Cu
Optimum melting rate Optimum melting rate approx. 130 kg Al/h / 185 kg Cu/h
Practial melting rate Practial melting rate approx. 104 kg Al/h / 115 kg Cu/h
Request now
