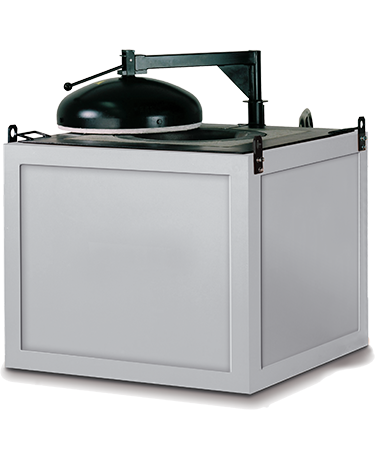

Electrically heated bail-out crucible furnaces

Crucible Furnaces TA 30/11 – TA 800/11

Working temperatures up to 1100°C

PDF Download for this category:

Technical specifications

  • Rugged casing construction
  • Compact construction > Easy access to metal bath
  • Friendly working conditions due to excellent thermal insulation
  • Low energy consumption, low operating costs (approx. 0.4 kWh/kg aluminium)
  • High-quality heating elements wound on ceramic tubes > Free heat radiation onto crucible, low energy consumption, longer service life of heating elements
  • Uniform heating of melt and crucible due to heating from 4 sides, superb metal quality, good crucible life
  • Heat-resistant cast-iron ring on removable refractory concrete cover protects crucible against mechanical damage and allows easy access for crucible change
  • Emergency outlet drain
  • Cable harness between control panel and furnace protected by flexible metal conduit, providing optimum protection against mechanical damage
  • Low maintenance cos

Furnaces also supplied for holding only (with lower power ratings).

Next model
Technical specifications
Model Model TA 30/11
Max. temperature Max. temperature | C° 1100°C
Outside dimensions Outside dimensions | mm W 860 x D 860 x H 810
Power rating Power rating | kW 18 kW
Suitable for crucible Suitable for crucible A 70
Capacity Capacity 20 kg Al
Optimum melting rate Optimum melting rate approx. 34 kg Al/h
Practial melting rate Practial melting rate approx. 27 kg Al/h
Next model
Technical specifications
Model Model TA 50/11
Max. temperature Max. temperature | C° 1100°C
Outside dimensions Outside dimensions | mm W 860 x D 860 x H 860
Power rating Power rating | kW 20 kW
Suitable for crucible Suitable for crucible A 150
Capacity Capacity 45 kg Al
Optimum melting rate Optimum melting rate approx. 43 kg Al/h
Practial melting rate Practial melting rate approx. 34 kg Al/h
Next model
Technical specifications
Model Model TA 100/11
Max. temperature Max. temperature | C° 1100°C
Outside dimensions Outside dimensions | mm W 1010 x D 1010 x H 910
Power rating Power rating | kW 26 kW
Suitable for crucible Suitable for crucible A 300
Capacity Capacity 90 kg Al
Optimum melting rate Optimum melting rate approx. 60 kg Al/h
Practial melting rate Practial melting rate approx. 48 kg Al/h
Next model
Technical specifications
Model Model TA 200/11
Max. temperature Max. temperature | C° 1100°C
Outside dimensions Outside dimensions | mm W 1160 x D 1160 x H 950
Power rating Power rating | kW 54 kW
Suitable for crucible Suitable for crucible BU 200
Capacity Capacity 200 kg Al
Optimum melting rate Optimum melting rate approx. 130 kg Al/h
Practial melting rate Practial melting rate approx. 104 kg Al/h
Next model
Technical specifications
Model Model TA 300/11
Max. temperature Max. temperature | C° 1100°C
Outside dimensions Outside dimensions | mm W 1210 x D 1210 x H 1050
Power rating Power rating | kW 64 kW
Suitable for crucible Suitable for crucible BU 300
Capacity Capacity 300 kg Al
Optimum melting rate Optimum melting rate approx. 140 kg Al/h
Practial melting rate Practial melting rate approx. 110 kg Al/h
Next model
Technical specifications
Model Model TA 350/11
Max. temperature Max. temperature | C° 1100°C
Outside dimensions Outside dimensions | mm W 1210 x D 1210 x H 1270
Power rating Power rating | kW 67 kW
Suitable for crucible Suitable for crucible BU 350
Capacity Capacity 350 kg Al
Optimum melting rate Optimum melting rate approx. 160 kg Al/h
Practial melting rate Practial melting rate approx. 128 kg Al/h
Next model
Technical specifications
Model Model TA 500/11
Max. temperature Max. temperature | C° 1100°C
Outside dimensions Outside dimensions | mm W 1390 x D 1390 x H 1270
Power rating Power rating | kW 73 kW
Suitable for crucible Suitable for crucible BU 500
Capacity Capacity 500 kg Al
Optimum melting rate Optimum melting rate approx. 170 kg Al/h
Practial melting rate Practial melting rate approx. 135 kg Al/h
Next model
Technical specifications
Model Model TA 600/11
Max. temperature Max. temperature | C° 1100°C
Outside dimensions Outside dimensions | mm W 1390 x D 1390 x H 1420
Power rating Power rating | kW 83 kW
Suitable for crucible Suitable for crucible BU 600
Capacity Capacity 600 kg Al
Optimum melting rate Optimum melting rate approx. 215 kg Al/h
Practial melting rate Practial melting rate approx. 170 kg Al/h
Next model
Technical specifications
Model Model TA 800/11
Max. temperature Max. temperature | C° 1100°C
Outside dimensions Outside dimensions | mm W 1430 x D 1430 x H 1490
Power rating Power rating | kW 103 kW
Suitable for crucible Suitable for crucible BU 800
Capacity Capacity 800 kg Al
Optimum melting rate Optimum melting rate approx. 260 kg Al/h
Practial melting rate Practial melting rate approx. 210 kg Al/h

Crucible Furnaces TK 70/13 – TK 500/13

Working temperatures up to 1300°C

PDF Download for this category:

Technical specifications

  • Rugged casing construction
  • Compact construction > Easy access to metal bath
  • Friendly working conditions due to excellent thermal insulation
  • Low energy consumption, low operating costs (approx. 0.4 kWh/kg aluminium)
  • High-quality heating elements wound on ceramic tubes > Free heat radiation onto crucible, low energy consumption, longer service life of heating elements
  • Uniform heating of melt and crucible due to heating from 4 sides, superb metal quality, good crucible life
  • Heat-resistant cast-iron ring on removable refractory concrete cover protects crucible against mechanical damage and allows easy access for crucible change
  • Emergency outlet drain
  • Cable harness between control panel and furnace protected by flexible metal conduit, providing optimum protection against mechanical damage
  • Low maintenance cos

Furnaces also supplied for holding only (with lower power ratings).

Next model
Technical specifications
Model Model TK 70/13
Max. temperature Max. temperature | C° 1300°C
Outside dimensions Outside dimensions | mm W 860 x D 860 x H 810
Power rating Power rating | kW 18 kW
Suitable for crucible Suitable for crucible A 70
Capacity Capacity 20 kg Al or 70 kg Cu
Optimum melting rate Optimum melting rate approx. 34 kg Al/h / 50 kg Cu/h
Practial melting rate Practial melting rate approx. 27 kg Al/h / 30 kg Cu/h
Next model
Technical specifications
Model Model TK 150/13
Max. temperature Max. temperature | C° 1300°C
Outside dimensions Outside dimensions | mm W 860 x D 860 x H 870
Power rating Power rating | kW 20 kW
Suitable for crucible Suitable for crucible A 150
Capacity Capacity 45 kg Al or 150 kg Cu
Optimum melting rate Optimum melting rate approx. 43 kg Al/h / 64 kg Cu/h
Practial melting rate Practial melting rate approx. 34 kg Al/h / 40 kg Cu/h
Next model
Technical specifications
Model Model TK 300/13
Max. temperature Max. temperature | C° 1300°C
Outside dimensions Outside dimensions | mm W 1010 x D 1010 x H 910
Power rating Power rating | kW 26 kW
Suitable for crucible Suitable for crucible A 300
Capacity Capacity 90 kg Al or 300 kg Cu
Optimum melting rate Optimum melting rate approx. 60 kg Al/h / 85 kg Cu/h
Practial melting rate Practial melting rate approx. 48 kg Al/h / 50 kg Cu/h
Next model
Technical specifications
Model Model TK 500/13
Max. temperature Max. temperature | C° 1300°C
Outside dimensions Outside dimensions | mm W 1160 x D 1160 x H 950
Power rating Power rating | kW 54 kW
Suitable for crucible Suitable for crucible BU 200
Capacity Capacity 200 kg Al or 650 kg Cu
Optimum melting rate Optimum melting rate approx. 130 kg Al/h / 190 kg Cu/h
Practial melting rate Practial melting rate approx. 104 kg Al/h / 115 kg Cu/h
