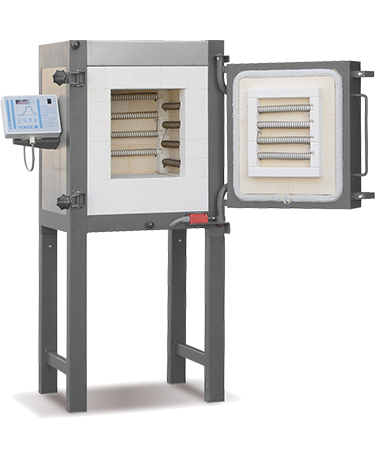

Chamber furnaces (cubic furnace chamber)

PDF Download for this category:

Technical specifications

Chamber furnaces (cubic furnace chamber) KC 16/13 – KC 2000/13

Working temperatures up to 1300°C

PDF Download for this category:

Technical specifications

Previous Next KC 16/13 KC 32/13 KC 64/13 KC 128/13 KC 220/13 KC 520/13 KC 1000/13 KC 2000/13

1
2
3
4
5
6
7
8

Next model

Technical specifications
	Model	KC 16/13
	Max. temperature \| C°	1300°C
	Inside dimensions \| mm	W 250 x D 250 x H 250
	Outside dimensions \| mm	W 660 x D 870 x H 1360
	Weight \| kg	155 kg
	Volume \| l	16 l
	Power \| kW	6,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KC 32/13
	Max. temperature \| C°	1300°C
	Inside dimensions \| mm	W 320 x D 320 x H 320
	Outside dimensions \| mm	W 730 x D 940 x H 1430
	Weight \| kg	185 kg
	Volume \| l	32 l
	Power \| kW	8,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KC 64/13
	Max. temperature \| C°	1300°C
	Inside dimensions \| mm	W 400 x D 400 x H 400
	Outside dimensions \| mm	W 810 x D 1020 x H 1510
	Weight \| kg	255 kg
	Volume \| l	64 l
	Power \| kW	10,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KC 128/13
	Max. temperature \| C°	1300°C
	Inside dimensions \| mm	W 500 x D 500 x H 500
	Outside dimensions \| mm	W 910 x D 1120 x H 1610
	Weight \| kg	320 kg
	Volume \| l	128 l
	Power \| kW	12,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KC 220/13
	Max. temperature \| C°	1300°C
	Inside dimensions \| mm	W 600 x D 600 x H 600
	Outside dimensions \| mm	W 1010 x D 1220 x H 1710
	Weight \| kg	410 kg
	Volume \| l	216 l
	Power \| kW	20,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KC 520/13
	Max. temperature \| C°	1300°C
	Inside dimensions \| mm	W 800 x D 800 x H 800
	Outside dimensions \| mm	W 1210 x D 1420 x H 1910
	Weight \| kg	730 kg
	Volume \| l	512 l
	Power \| kW	48,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KC 1000/13
	Max. temperature \| C°	1300°C
	Inside dimensions \| mm	W 1000 x D 1000 x H 1000
	Outside dimensions \| mm	W 1640 x D 1840 x H 1970
	Weight \| kg	1480 kg
	Volume \| l	1000 l
	Power \| kW	76,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KC 2000/13
	Max. temperature \| C°	1300°C
	Inside dimensions \| mm	W 1250 x D 1250 x H 1250
	Outside dimensions \| mm	W 1890 x D 2090 x H 2220
	Weight \| kg	2780 kg
	Volume \| l	1950 l
	Power \| kW	140,0 kW
	Voltage \| V	400 3/N V

PDF Download for this category:

Technical specifications

Chamber furnaces (cubic furnace chamber) KC 16/14 – KC 2000/14

Working temperatures up to 1400°C

PDF Download for this category:

Technical specifications

Previous Next KC 16/14 KC 32/14 KC 64/14 KC 128/14 KC 220/14 KC 520/14 KC 1000/14 KC 2000/14

1
2
3
4
5
6
7
8

Next model

Technical specifications
	Model	KC 16/14
	Max. temperature \| C°	1400°C
	Inside dimensions \| mm	W 250 x D 250 x H 250
	Outside dimensions \| mm	W 660 x D 870 x H 1360
	Weight \| kg	155 kg
	Volume \| l	16 l
	Power \| kW	6,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KC 32/14
	Max. temperature \| C°	1400°C
	Inside dimensions \| mm	W 320 x D 320 x H 320
	Outside dimensions \| mm	W 730 x D 940 x H 1430
	Weight \| kg	185 kg
	Volume \| l	32 l
	Power \| kW	8,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KC 64/14
	Max. temperature \| C°	1400°C
	Inside dimensions \| mm	W 400 x D 400 x H 400
	Outside dimensions \| mm	W 810 x D 1020 x H 1510
	Weight \| kg	255 kg
	Volume \| l	64 l
	Power \| kW	10,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KC 128/14
	Max. temperature \| C°	1400°C
	Inside dimensions \| mm	W 500 x D 500 x H 500
	Outside dimensions \| mm	W 910 x D 1120 x H 1610
	Weight \| kg	320 kg
	Volume \| l	128 l
	Power \| kW	12,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KC 220/14
	Max. temperature \| C°	1400°C
	Inside dimensions \| mm	W 600 x D 600 x H 600
	Outside dimensions \| mm	W 1010 x D 1220 x H 1710
	Weight \| kg	410 kg
	Volume \| l	216 l
	Power \| kW	20,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KC 520/14
	Max. temperature \| C°	1400°C
	Inside dimensions \| mm	W 800 xD 800 x H 800
	Outside dimensions \| mm	W 1210 x D 1420 x H 1910
	Weight \| kg	730 kg
	Volume \| l	512 l
	Power \| kW	48,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KC 1000/14
	Max. temperature \| C°	1400°C
	Inside dimensions \| mm	W 1000 x D 1000 x H 1000
	Outside dimensions \| mm	W 1640 x D 1840 x H 1970
	Weight \| kg	1480 kg
	Volume \| l	1000 l
	Power \| kW	76,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KC 2000/14
	Max. temperature \| C°	1400°C
	Inside dimensions \| mm	W 1250 x D 1250 x H 1250
	Outside dimensions \| mm	W 1890 x D 2090 x H 2220
	Weight \| kg	2780 kg
	Volume \| l	1950 l
	Power \| kW	140,0 kW
	Voltage \| V	400 3/N V
