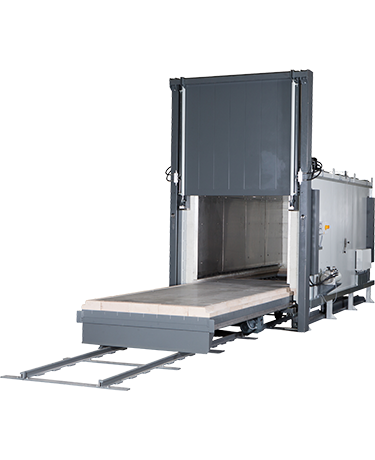

Air-circulation bogie hearth furnaces

PDF Download for this category:

Technical specifications

Air-circulation bogie hearth furnaces WM 1000/06/A – WM 7200/06/A

Working temperatures up to 650°C

PDF Download for this category:

Technical specifications

Previous Next WM 1000/06/A WM 1500/06/A WM 2000/06/A WM 3600/06/A WM 5000/06/A WM 7200/06/A

1
2
3
4
5
6

Next model

Technical specifications
	Model	WM 1000/06/A
	Max. temperature \| C°	650°C
	Inside dimensions \| mm	W 1000 x D 1000 x H 1000
	Outside dimensions \| mm	W 2200 x D 1800 x H 3200
	Weight \| kg	1420 kg
	Volume \| l	1000 l
	Power \| kW	47,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 1500/06/A
	Max. temperature \| C°	650°C
	Inside dimensions \| mm	W 1000 x D 1500 x H 1000
	Outside dimensions \| mm	W 2200 x D 2300 x H 3200
	Weight \| kg	1570 kg
	Volume \| l	1500 l
	Power \| kW	59,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 2000/06/A
	Max. temperature \| C°	650°C
	Inside dimensions \| mm	W 1000 x D 2000 x H 1000
	Outside dimensions \| mm	W 2200 x D 2800 x H 3200
	Weight \| kg	1950 kg
	Volume \| l	2000 l
	Power \| kW	75,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 3600/06/A
	Max. temperature \| C°	650°C
	Inside dimensions \| mm	W 1300 x D 2500 x H 1100
	Outside dimensions \| mm	W 2500 x D 3100 x H 3500
	Weight \| kg	2400 kg
	Volume \| l	3580 l
	Power \| kW	93,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 5000/06/A
	Max. temperature \| C°	650°C
	Inside dimensions \| mm	W 1300 x D 3100 x H 1250
	Outside dimensions \| mm	W 2500 x D 3800 x H 3700
	Weight \| kg	4600 kg
	Volume \| l	5040 l
	Power \| kW	101,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 7200/06/A
	Max. temperature \| C°	650°C
	Inside dimensions \| mm	W 1500 x D 3100 x H 1500
	Outside dimensions \| mm	W 2800 x D 3800 x H 3900
	Weight \| kg	5300 kg
	Volume \| l	6980 l
	Power \| kW	117,0 kW
	Voltage \| V	400 3/N V

PDF Download for this category:

Technical specifications

Air-circulation bogie hearth furnaces WM 1000/08/A – WM 7200/08/A

Working temperatures up to 850°C

PDF Download for this category:

Technical specifications

Previous Next WM 1000/08/A WM 1500/08/A WM 2000/08/A WM 3600/08/A WM 5000/08/A WM 7200/08/A

1
2
3
4
5
6

Next model

Technical specifications
	Model	WM 1000/08/A
	Max. temperature \| C°	850°C
	Inside dimensions \| mm	W 1000 x D 1000 x H 1000
	Outside dimensions \| mm	W 2200 x D 1800 x H 3200
	Weight \| kg	1420 kg
	Volume \| l	1000 l
	Power \| kW	50,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 1500/08/A
	Max. temperature \| C°	850°C
	Inside dimensions \| mm	W 1000 x D 1500 x H 1000
	Outside dimensions \| mm	W 2200 x D 2300 x H 3200
	Weight \| kg	1570 kg
	Volume \| l	1500 l
	Power \| kW	66,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 2000/08/A
	Max. temperature \| C°	850°C
	Inside dimensions \| mm	W 1000 x D 2000 x H 1000
	Outside dimensions \| mm	W 2200 x D 2800 x H 3200
	Weight \| kg	1950 kg
	Volume \| l	2000 l
	Power \| kW	86,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 3600/08/A
	Max. temperature \| C°	850°C
	Inside dimensions \| mm	W 1300 x D 2500 x H 1100
	Outside dimensions \| mm	W 2500 x D 3100 x H 3500
	Weight \| kg	2400 kg
	Volume \| l	3580 l
	Power \| kW	101,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 5000/08/A
	Max. temperature \| C°	850°C
	Inside dimensions \| mm	W 1300 x D 3100 x H 1250
	Outside dimensions \| mm	W 2500 x D 3800 x H 3700
	Weight \| kg	4600 kg
	Volume \| l	5040 l
	Power \| kW	156,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 7200/08/A
	Max. temperature \| C°	850°C
	Inside dimensions \| mm	W 1500 x D 3100 x H 1500
	Outside dimensions \| mm	W 2800 x D 3800 x H 3900
	Weight \| kg	5300 kg
	Volume \| l	6980 l
	Power \| kW	168,0 kW
	Voltage \| V	400 3/N V
