Bogie-hearth furnaces

PDF Download for this category:

Technical specifications

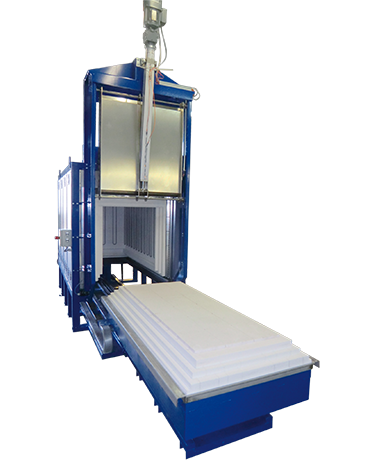

High-temperature bogie-hearth furnaces HTW 500/16 – HTW 2000/16

Working temperatures up to 1600°C

PDF Download for this category:

Technical specifications

Previous Next HTW 500/16 HTW 1000/16 HTW 1500/16 HTW 2000/16

1
2
3
4

Next model

Technical specifications
	Model	HTW 500/16
	Max. temperature \| C°	1600°C
	Inside dimensions \| mm	W 500 x D 1200 x H 800
	Volume \| l	480 l
	Power \| kW	80,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	HTW 1000/16
	Max. temperature \| C°	1600°C
	Inside dimensions \| mm	W 700 x D 1800 x H 800
	Volume \| l	1000 l
	Power \| kW	143,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	HTW 1500/16
	Max. temperature \| C°	1600°C
	Inside dimensions \| mm	W 850 x D 2200 x H 800
	Volume \| l	1500 l
	Power \| kW	190,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	HTW 2000/16
	Max. temperature \| C°	1600°C
	Inside dimensions \| mm	W 1000 x D 2400 x H 800
	Volume \| l	1920 l
	Power \| kW	210,0 kW
	Voltage \| V	400 3/N V

PDF Download for this category:

Technical specifications

High-temperature bogie-hearth furnaces HTW 500/17 – HTW 2000/17

Working temperatures up to 1750°C

PDF Download for this category:

Technical specifications

Previous Next HTW 500/17 HTW 1000/17 HTW 1500/17 HTW 2000/17

1
2
3
4

Next model

Technical specifications
	Model	HTW 500/17
	Max. temperature \| C°	1750°C
	Inside dimensions \| mm	W 500 x D 1200 x H 800
	Volume \| l	480 l
	Power \| kW	80,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	HTW 1000/17
	Max. temperature \| C°	1750°C
	Inside dimensions \| mm	W 700 x D 1800 x H 800
	Volume \| l	1000 l
	Power \| kW	143,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	HTW 1500/17
	Max. temperature \| C°	1750°C
	Inside dimensions \| mm	W 850 x D 2200 x H 800
	Volume \| l	1500 l
	Power \| kW	190,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	HTW 2000/17
	Max. temperature \| C°	1750°C
	Inside dimensions \| mm	W 1000 x D 2400 x H 800
	Volume \| l	1920 l
	Power \| kW	210,0 kW
	Voltage \| V	400 3/N V

PDF Download for this category:

Technical specifications

High-temperature bogie-hearth furnaces HTW 500/18 – HTW 2000/18

Working temperatures up to 1800°C

PDF Download for this category:

Technical specifications

Previous Next HTW 500/18 HTW 1000/18 HTW 1500/18 HTW 2000/18

1
2
3
4

Next model

Technical specifications
	Model	HTW 500/18
	Max. temperature \| C°	1800°C
	Inside dimensions \| mm	W 500 x D 1200 x H 800
	Volume \| l	480 l
	Power \| kW	80,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	HTW 1000/18
	Max. temperature \| C°	1800°C
	Inside dimensions \| mm	W 700 x D 1800 x H 800
	Volume \| l	1000 l
	Power \| kW	143,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	HTW 1500/18
	Max. temperature \| C°	1800°C
	Inside dimensions \| mm	W 850 x D 2200 x H 800
	Volume \| l	1500 l
	Power \| kW	190,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	HTW 2000/18
	Max. temperature \| C°	1800°C
	Inside dimensions \| mm	W 1000 x D 2400 x H 800
	Volume \| l	1920 l
	Power \| kW	210,0 kW
	Voltage \| V	400 3/N V
