High temperature combi furnaces up to 1750°C

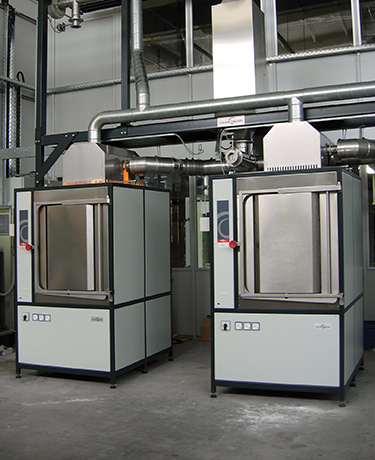

High temperature combi ovens HTK 70/16 DB – HTK 300/17 DB

Working temperatures up to 1750°C

PDF Download for this category:

Technical specifications
Next model
Technical specifications
Model Model HTK 70/16 DB
Max. temperature Max. temperature | C° 1600°C
Inside dimensions Inside dimensions | mm W 400 x D 400 x H 400
Outside dimensions Outside dimensions | mm W 1100 x D 835 x H 1790
Weight Weight | kg 550 kg
Volume Volume | l 64 l
Power Power | kW 19,0 kW
Voltage Voltage | V 400 3/N V
Next model
Technical specifications
Model Model HTK 160/16 DB
Max. temperature Max. temperature | C° 1600°C
Inside dimensions Inside dimensions | mm W 500 x D 550 x H 550
Outside dimensions Outside dimensions | mm W 1200 x D 975 x H 1940
Weight Weight | kg 700 kg
Volume Volume | l 150 l
Power Power | kW 25,0 kW
Voltage Voltage | V 400 3/N V
Next model
Technical specifications
Model Model HTK 300/16 DB
Max. temperature Max. temperature | C° 1600°C
Inside dimensions Inside dimensions | mm W 500 x D 1100 x H 550
Outside dimensions Outside dimensions | mm W 1260 x D 1605 x H 1940
Weight Weight | kg 1300 kg
Volume Volume | l 300 l
Power Power | kW 50,0 kW
Voltage Voltage | V 400 3/N V
Next model
Technical specifications
Model Model HTK 70/17 DB
Max. temperature Max. temperature | C° 1750°C
Inside dimensions Inside dimensions | mm W 400 x D 400 x H 400
Outside dimensions Outside dimensions | mm W 1100 x D 835 x H 1790
Weight Weight | kg 550 kg
Volume Volume | l 64 l
Power Power | kW 19,0 kW
Voltage Voltage | V 400 3/N V
Next model
Technical specifications
Model Model HTK 160/17 DB
Max. temperature Max. temperature | C° 1750°C
Inside dimensions Inside dimensions | mm W 500 x D 550 x H 550
Outside dimensions Outside dimensions | mm W 1200 x D 975 x H 1940
Weight Weight | kg 700 kg
Volume Volume | l 150 l
Power Power | kW 25,0 kW
Voltage Voltage | V 400 3/N V
Next model
Technical specifications
Model Model HTK 300/17 DB
Max. temperature Max. temperature | C° 1750°C
Inside dimensions Inside dimensions | mm W 500 x D 1100 x H 550
Outside dimensions Outside dimensions | mm W 1260 x D 1605 x H 1940
Weight Weight | kg 1300 kg
Volume Volume | l 300 l
Power Power | kW 50,0 kW
Voltage Voltage | V 400 3/N V
