Combi furnaces up to 1400°C

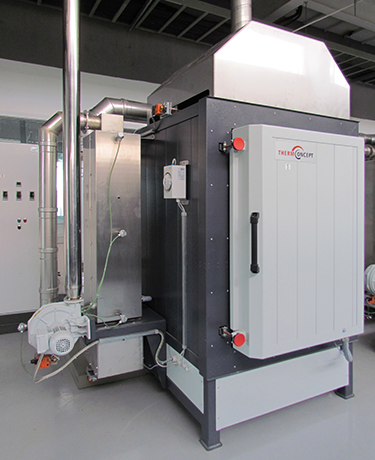

Combi furnaces KK 150/12 DB – KK 500/14 DB

Working temperatures up to 1400°C

PDF Download for this category:

Technical specifications
Next model
Technical specifications
Model Model KK 150/12 DB
Max. temperature Max. temperature | C° 1280°C
Inside dimensions Inside dimensions | mm W 430 x D 520 x H 640
Outside dimensions Outside dimensions | mm W 940 x D 1150 x H 1750
Volume Volume | l 145 l
Power Power | kW 23,0 kW
Voltage Voltage | V 400 3/N V
Next model
Technical specifications
Model Model KK 250/12 DB
Max. temperature Max. temperature | C° 1280°C
Inside dimensions Inside dimensions | mm W 430 x D 660 x H 760
Outside dimensions Outside dimensions | mm W 940 x D 1290 x H 1870
Volume Volume | l 215 l
Power Power | kW 27,0 kW
Voltage Voltage | V 400 3/N V
Next model
Technical specifications
Model Model KK 350/12 DB
Max. temperature Max. temperature | C° 1280°C
Inside dimensions Inside dimensions | mm W 480 x D 800 x H 800
Outside dimensions Outside dimensions | mm W 960 x D 1430 x H 1910
Volume Volume | l 310 l
Power Power | kW 42,0 kW
Voltage Voltage | V 400 3/N V
Next model
Technical specifications
Model Model KK 500/12 DB
Max. temperature Max. temperature | C° 1280°C
Inside dimensions Inside dimensions | mm W 580 x D 780 x H 1000
Outside dimensions Outside dimensions | mm W 1340 x D 1670 x H 2010
Volume Volume | l 450 l
Power Power | kW 54,0 kW
Voltage Voltage | V 400 3/N V
Next model
Technical specifications
Model Model KK 150/13 DB
Max. temperature Max. temperature | C° 1340°C
Inside dimensions Inside dimensions | mm W 430 x D 520 x H 640
Outside dimensions Outside dimensions | mm W 940 x D 1150 x H 1750
Volume Volume | l 145 l
Power Power | kW 23,0 kW
Voltage Voltage | V 400 3/N V
Next model
Technical specifications
Model Model KK 250/13 DB
Max. temperature Max. temperature | C° 1340°C
Inside dimensions Inside dimensions | mm W 430 x D 660 x H 760
Outside dimensions Outside dimensions | mm W 940 x D 1290 x H 1870
Volume Volume | l 215 l
Power Power | kW 27,0 kW
Voltage Voltage | V 400 3/N V
Next model
Technical specifications
Model Model KK 350/13 DB
Max. temperature Max. temperature | C° 1340°C
Inside dimensions Inside dimensions | mm W 480 x D 800 x H 800
Outside dimensions Outside dimensions | mm W 960 x D 1430 x H 1910
Volume Volume | l 310 l
Power Power | kW 42,0 kW
Voltage Voltage | V 400 3/N V
Next model
Technical specifications
Model Model KK 500/13 DB
Max. temperature Max. temperature | C° 1340°C
Inside dimensions Inside dimensions | mm W 580 x D 780 x H 1000
Outside dimensions Outside dimensions | mm W 1340 x D 1670 x H 2010
Volume Volume | l 450 l
Power Power | kW 54,0 kW
Voltage Voltage | V 400 3/N V
Next model
Technical specifications
Model Model KK 150/14 DB
Max. temperature Max. temperature | C° 1400°C
Inside dimensions Inside dimensions | mm W 430 x D 520 x H 640
Outside dimensions Outside dimensions | mm W 940 x D 1150 x H 1750
Volume Volume | l 145 l
Power Power | kW 23,0 kW
Voltage Voltage | V 400 3/N V
Next model
Technical specifications
Model Model KK 250/14 DB
Max. temperature Max. temperature | C° 1400°C
Inside dimensions Inside dimensions | mm W 430 x D 660 x H 760
Outside dimensions Outside dimensions | mm W 940 x D 1290 x H 1870
Volume Volume | l 215 l
Power Power | kW 27,0 kW
Voltage Voltage | V 400 3/N V
Next model
Technical specifications
Model Model KK 350/14 DB
Max. temperature Max. temperature | C° 1400°C
Inside dimensions Inside dimensions | mm W 480 x D 800 x H 800
Outside dimensions Outside dimensions | mm W 960 x D 1430 x H 1910
Volume Volume | l 310 l
Power Power | kW 42,0 kW
Voltage Voltage | V 400 3/N V
Next model
Technical specifications
Model Model KK 500/14 DB
Max. temperature Max. temperature | C° 1400°C
Inside dimensions Inside dimensions | mm W 580 x D 780 x H 1000
Outside dimensions Outside dimensions | mm W 1340 x D 1670 x H 2010
Volume Volume | l 450 l
Power Power | kW 54,0 kW
Voltage Voltage | V 400 3/N V
