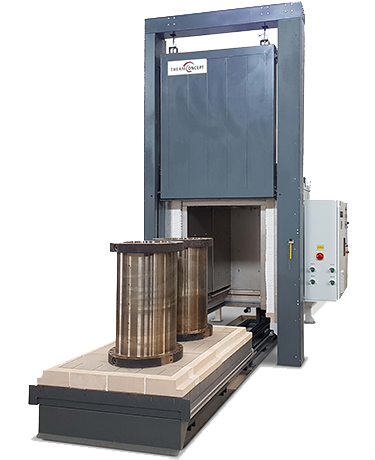

Air circulation Bogie-Hearth furnaces up to 850°C

PDF Download for this category:

Technical specifications

Air circulation Bogie-Hearth furnaces WM 1000/02/A - WM 7200/02/A

Working temperatures up to 250°C

PDF Download for this category:

Technical specifications

Previous Next WM 1000/02/A WM 1500/02/A WM 2000/02/A WM 3500/02/A WM 5000/02/A WM 7200/02/A

1
2
3
4
5
6

Infos
Options

All furnaces electrically heated with horizontal or vertical airflow
Ovens for maximum temperatures of 250 °C and 450 °C, e.g. for drying, preheating and ageing of large batches
Robust, double-walled housing constructions, inner housing covering the insulation and air baffle made of heat-resistant stainless steel
Furnaces in standard version with parallel-guided swing door
Powerful recirculation fans for high air exchange and optimum temperature distribution of up to +/ - 5 K according to DIN 17052 in the usable chamber
High-quality insulation with low heat losses and low power consumption
Rail-bound bogie with flange wheels for abovefloor or underfloor installation
Manual exhaust air flaps

Lift door with electric or hydraulic drive
Automatic fresh air and exhaust air flap control for furnace ventilation and faster cooling
Air inlet fan for smooth furnace chamber ventilation and atmosphere exchange
Automatic cooling system for forced cooling
Electric bogie drive
2. bogie
Furnace installation with transverse shunting track for several bogies and parking rails
Second door on the rear wall of the furnace for operation with two bogies
Bogie hearth freely movable on wheels
Indirect gas heating
Connections for vacuum pump and thermocouples inside furnace chamber
Customer-specific designs

Next model

Technical specifications
	Model	WM 1000/02/A
	Max. temperature \| C°	250°C
	Inside dimensions \| mm	W 1000 x D 1000 x H 1000
	Outside dimensions \| mm	W 2200 x D 1800 x H 3200
	Weight \| kg	1130 kg
	Volume \| l	1000 l
	Power \| kW	32,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 1500/02/A
	Max. temperature \| C°	250°C
	Inside dimensions \| mm	W 1000 x D 1500 x H 1000
	Outside dimensions \| mm	W 2200 x D 2300 x H 3200
	Weight \| kg	1290 kg
	Volume \| l	1500 l
	Power \| kW	47,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 2000/02/A
	Max. temperature \| C°	250°C
	Inside dimensions \| mm	W 1000 x D 2000 x H 1000
	Outside dimensions \| mm	W 2200 x D 2900 x H 3200
	Weight \| kg	1420 kg
	Volume \| l	2000 l
	Power \| kW	59,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 3500/02/A
	Max. temperature \| C°	250°C
	Inside dimensions \| mm	W 1300 x D 2500 x H 1100
	Outside dimensions \| mm	W 2500 x D 3100 x H 3500
	Weight \| kg	1740 kg
	Volume \| l	3580 l
	Power \| kW	72,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 5000/02/A
	Max. temperature \| C°	250°C
	Inside dimensions \| mm	W 1300 x D 3100 x H 1250
	Outside dimensions \| mm	W 2500 x D 3800 x H 3700
	Weight \| kg	1900 kg
	Volume \| l	5040 l
	Power \| kW	78,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 7200/02/A
	Max. temperature \| C°	250°C
	Inside dimensions \| mm	W 1500 x D 3100 x H 1500
	Outside dimensions \| mm	W 2800 x D 3800 x H 3900
	Weight \| kg	2700 kg
	Volume \| l	6980 l
	Power \| kW	93,0 kW
	Voltage \| V	400 3/N V

PDF Download for this category:

Technical specifications

Air circulation Bogie-Hearth furnaces WM 1000/04/A - WM 7200/04/A

Working temperatures up to 450°C

PDF Download for this category:

Technical specifications

Previous Next WM 1000/04/A WM 1500/04/A WM 2000/04/A WM 3500/04/A WM 5000/04/A WM 7200/04/A

1
2
3
4
5
6

Infos
Options

All furnaces electrically heated with horizontal or vertical airflow
Ovens for maximum temperatures of 250 °C and 450 °C, e.g. for drying, preheating and ageing of large batches
Robust, double-walled housing constructions, inner housing covering the insulation and air baffle made of heat-resistant stainless steel
Furnaces in standard version with parallel-guided swing door
Powerful recirculation fans for high air exchange and optimum temperature distribution of up to +/ - 5 K according to DIN 17052 in the usable chamber
High-quality insulation with low heat losses and low power consumption
Rail-bound bogie with flange wheels for abovefloor or underfloor installation
Manual exhaust air flaps

Lift door with electric or hydraulic drive
Automatic fresh air and exhaust air flap control for furnace ventilation and faster cooling
Air inlet fan for smooth furnace chamber ventilation and atmosphere exchange
Automatic cooling system for forced cooling
Electric bogie drive
2. bogie
Furnace installation with transverse shunting track for several bogies and parking rails
Second door on the rear wall of the furnace for operation with two bogies
Bogie hearth freely movable on wheels
Indirect gas heating
Connections for vacuum pump and thermocouples inside furnace chamber
Customer-specific designs

Next model

Technical specifications
	Model	WM 1000/04/A
	Max. temperature \| C°	450°C
	Inside dimensions \| mm	W 1000 x D 1000 x H 1000
	Outside dimensions \| mm	W 2200 x D 1800 x H 3200
	Weight \| kg	1130 kg
	Volume \| l	1000 l
	Power \| kW	41,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 1500/04/A
	Max. temperature \| C°	450°C
	Inside dimensions \| mm	W 1000 x D 1500 x H 1000
	Outside dimensions \| mm	W 2200 x D 2300 x H 3200
	Weight \| kg	1290 kg
	Volume \| l	1500 l
	Power \| kW	53,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 2000/04/A
	Max. temperature \| C°	450°C
	Inside dimensions \| mm	W 1000 x D 2000 x H 1000
	Outside dimensions \| mm	W 2200 x D 2900 x H 3200
	Weight \| kg	1420 kg
	Volume \| l	2000 l
	Power \| kW	68,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 3500/04/A
	Max. temperature \| C°	450°C
	Inside dimensions \| mm	W 1300 x D 2500 x H 1100
	Outside dimensions \| mm	W 2500 x D 3100 x H 3500
	Weight \| kg	1740 kg
	Volume \| l	3580 l
	Power \| kW	81,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 5000/04/A
	Max. temperature \| C°	450°C
	Inside dimensions \| mm	W 1300 x D 3100 x H 1250
	Outside dimensions \| mm	W 2500 x D 3800 x H 3700
	Weight \| kg	1900 kg
	Volume \| l	5040 l
	Power \| kW	87,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 7200/04/A
	Max. temperature \| C°	450°C
	Inside dimensions \| mm	W 1500 x D 3100 x H 1500
	Outside dimensions \| mm	W 2800 x D 3800 x H 3900
	Weight \| kg	2700 kg
	Volume \| l	6980 l
	Power \| kW	102,0 kW
	Voltage \| V	400 3/N V

PDF Download for this category:

Technical specifications

Air circulation Bogie-Hearth furnaces WM 1000/06/A - WM 7200/06/A

Working temperatures up to 650°C

PDF Download for this category:

Technical specifications

Previous Next WM 1000/06/A WM 1500/06/A WM 2000/06/A WM 3500/06/A WM 5000/06/A WM 7200/06/A

1
2
3
4
5
6

Infos
Options

These bogie hearth furnaces are particularly suitable for the heat treatment of large batches with high work load.
Vertical air flow, optimum temperature distribution inside the usable dimensions of up to +/-5 K according to DIN 17052
Furnaces for maximum temperatures of 650 °C and 850 °C
Robust housing design and inner housing made of heat-resistant stainless steel
Furnace door in the standard version designed as parallel guided swing door
Strong bogie equipped with flanged wheels on rails incl. rails in front of the furnace, bogie completely covered with stainless steel plates
High-quality, multi-layer insulation for low heat losses and low power consumption
Powerful air-circulation fans in the furnace ceiling
Manual exhaust air flaps

Lift door with electric or hydraulic drive
Automatic fresh air and exhaust air flap control for furnace venting and faster cooling
Automatic cooling system for forced cooling
Electric bogie drive
2. bogie
Furnace installation with transverse shunting track for several bogies and parking rails
Second door on the rear wall of the furnace for operation with two bogies
Custom-made designs
Support grate for bogie made of heat-resistant cast steel for optimum load distribution
Bogie hearth furnaces also available gas-heated

Next model

Technical specifications
	Model	WM 1000/06/A
	Max. temperature \| C°	650°C
	Inside dimensions \| mm	W 1000 x D 1000 x H 1000
	Outside dimensions \| mm	W 2200 x D 1800 x H 3200
	Weight \| kg	1420 kg
	Volume \| l	1000 l
	Power \| kW	47,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 1500/06/A
	Max. temperature \| C°	650°C
	Inside dimensions \| mm	W 1000 x D 1500 x H 1000
	Outside dimensions \| mm	W 2200 x D 2300 x H 3200
	Weight \| kg	1570 kg
	Volume \| l	1500 l
	Power \| kW	59,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 2000/06/A
	Max. temperature \| C°	650°C
	Inside dimensions \| mm	W 1000 x D 2000 x H 1000
	Outside dimensions \| mm	W 2200 x D 2900 x H 3200
	Weight \| kg	1950 kg
	Volume \| l	2000 l
	Power \| kW	75,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 3500/06/A
	Max. temperature \| C°	650°C
	Inside dimensions \| mm	W 1300 x D 2500 x H 1100
	Outside dimensions \| mm	W 2500 x D 3100 x H 3500
	Weight \| kg	2400 kg
	Volume \| l	3580 l
	Power \| kW	93,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 5000/06/A
	Max. temperature \| C°	650°C
	Inside dimensions \| mm	W 1300 x D 3100 x H 1250
	Outside dimensions \| mm	W 2500 x D 3800 x H 3700
	Weight \| kg	4600 kg
	Volume \| l	5040 l
	Power \| kW	101,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 7200/06/A
	Max. temperature \| C°	650°C
	Inside dimensions \| mm	W 1500 x D 3100 x H 1500
	Outside dimensions \| mm	W 2800 x D 3800 x H 3900
	Weight \| kg	5300 kg
	Volume \| l	6980 l
	Power \| kW	117,0 kW
	Voltage \| V	400 3/N V

PDF Download for this category:

Technical specifications

Air circulation Bogie-Hearth furnaces WM 1000/08/A - WM 7200/08/A

Working temperatures up to 850°C

PDF Download for this category:

Technical specifications

Previous Next WM 1000/08/A WM 1500/08/A WM 2000/08/A WM 3500/08/A WM 5000/08/A WM 7200/08/A

1
2
3
4
5
6

Infos
Options

These bogie hearth furnaces are particularly suitable for the heat treatment of large batches with high work load.
Vertical air flow, optimum temperature distribution inside the usable dimensions of up to +/-5 K according to DIN 17052
Furnaces for maximum temperatures of 650 °C and 850 °C
Robust housing design and inner housing made of heat-resistant stainless steel
Furnace door in the standard version designed as parallel guided swing door
Strong bogie equipped with flanged wheels on rails incl. rails in front of the furnace, bogie completely covered with stainless steel plates
High-quality, multi-layer insulation for low heat losses and low power consumption
Powerful air-circulation fans in the furnace ceiling
Manual exhaust air flaps

Lift door with electric or hydraulic drive
Automatic fresh air and exhaust air flap control for furnace venting and faster cooling
Automatic cooling system for forced cooling
Electric bogie drive
2. bogie
Furnace installation with transverse shunting track for several bogies and parking rails
Second door on the rear wall of the furnace for operation with two bogies
Custom-made designs
Support grate for bogie made of heat-resistant cast steel for optimum load distribution
Bogie hearth furnaces also available gas-heated

Next model

Technical specifications
	Model	WM 1000/08/A
	Max. temperature \| C°	850°C
	Inside dimensions \| mm	W 1000 x D 1000 x H 1000
	Outside dimensions \| mm	W 2200 x D 1800 x H 3200
	Weight \| kg	1420 kg
	Volume \| l	1000 l
	Power \| kW	50,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 1500/08/A
	Max. temperature \| C°	850°C
	Inside dimensions \| mm	W 1000 x D 1500 x H 1000
	Outside dimensions \| mm	W 2200 x D 2300 x H 3200
	Weight \| kg	1570 kg
	Volume \| l	1500 l
	Power \| kW	66,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 2000/08/A
	Max. temperature \| C°	850°C
	Inside dimensions \| mm	W 1000 x D 2000 x H 1000
	Outside dimensions \| mm	W 2200 x D 2900 x H 3200
	Weight \| kg	1950 kg
	Volume \| l	2000 l
	Power \| kW	86,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 3500/08/A
	Max. temperature \| C°	850°C
	Inside dimensions \| mm	W 1300 x D 2500 x H 1100
	Outside dimensions \| mm	W 2500 x D 3100 x H 3500
	Weight \| kg	2400 kg
	Volume \| l	3580 l
	Power \| kW	101,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 5000/08/A
	Max. temperature \| C°	850°C
	Inside dimensions \| mm	W 1300 x D 3100 x H 1250
	Outside dimensions \| mm	W 2500 x D 3800 x H 3700
	Weight \| kg	4600 kg
	Volume \| l	5040 l
	Power \| kW	156,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	WM 7200/08/A
	Max. temperature \| C°	850°C
	Inside dimensions \| mm	W 1500 x D 3100 x H 1500
	Outside dimensions \| mm	W 2800 x D 3800 x H 3900
	Weight \| kg	5300 kg
	Volume \| l	6980 l
	Power \| kW	168,0 kW
	Voltage \| V	400 3/N V
