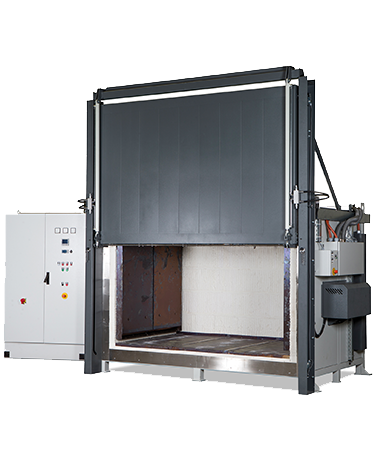

Air circulation chamber furnaces over 1000l

PDF Download for this category:

Technical specifications

Air circulation chamber furnaces over 1000l KT 1000/02/A - KT 8000/02/A

Working temperatures up to 250°C

PDF Download for this category:

Technical specifications

Previous Next KT 1000/02/A KT 1500/02/A KT 2000/02/A KT 3000/02/A KT 4000/02/A KT 4000/02/A1 KT 5000/02/A KT 6000/02/A KT 8000/02/A

1
2
3
4
5
6
7
8
9

Infos
Options

Furnaces for maximum temperatures of 250 °C and 450 °C, e.g. for drying and preheating of large batches
All furnaces with horizontal or vertical airflow, electrically heated
Robust design with double-walled housing, inside covering of insulation and air guide box made of heat-resistant stainless steel
Furnace door designed as single-wing or double-wing swing door
High-quality insulation with low heat losses and power consumption. In addition inside covered with metal sheets to prevent charge from dust contamination
Powerful air-circulation fans for high air exchange and optimum temperature distribution of up to +/- 5 K according to DIN 17052 inside the usable chamber
Manual exhaust air flaps

Pneumatic, electric or hydraulic lift door
Entry ramp/drive-in-tracks for ground level entry with charging trolley
Individually adapted charging trolleys with and without shelving system
Rail-bound charging carriages with electric drive
Automatic supply and exhaust air flap control for furnace ventilation
Air inlet fan for smooth furnace chamber ventilation and atmosphere exchange
Automatic cooling system for forced cooling and air exchange
Inspection window and furnace chamber lighting
All models also available with indirect gas heating
Optical/Acoustic Signals
Second door instead of furnace rear wall
Connections for vacuum pump and thermocouples

Next model

Technical specifications
	Model	KT 1000/02/A
	Max. temperature \| C°	250°C
	Inside dimensions \| mm	W 1000 x D 850 x H 1200
	Outside dimensions \| mm	W 1700 x D 1400 x H 1750
	Weight \| kg	670 kg
	Volume \| l	1020 l
	Power \| kW	17,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KT 1500/02/A
	Max. temperature \| C°	250°C
	Inside dimensions \| mm	W 1000 x D 850 x H 1850
	Outside dimensions \| mm	W 1800 x D 2100 x H 2400
	Weight \| kg	810 kg
	Volume \| l	1570 l
	Power \| kW	20,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KT 2000/02/A
	Max. temperature \| C°	250°C
	Inside dimensions \| mm	W 1100 x D 1500 x H 1200
	Outside dimensions \| mm	W 1900 x D 2900 x H 1750
	Weight \| kg	1100 kg
	Volume \| l	1980 l
	Power \| kW	27,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KT 3000/02/A
	Max. temperature \| C°	250°C
	Inside dimensions \| mm	W 1000 x D 1500 x H 2000
	Outside dimensions \| mm	W 1800 x D 2900 x H 2500
	Weight \| kg	1300 kg
	Volume \| l	3000 l
	Power \| kW	30,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KT 4000/02/A
	Max. temperature \| C°	250°C
	Inside dimensions \| mm	W 2200 x D 1500 x H 1200
	Outside dimensions \| mm	W 3000 x D 2900 x H 1750
	Weight \| kg	1650 kg
	Volume \| l	3960 l
	Power \| kW	41,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KT 4000/02/A1
	Max. temperature \| C°	250°C
	Inside dimensions \| mm	W 1100 x D 1500 x H 2300
	Outside dimensions \| mm	W 1900 x D 2900 x H 2900
	Weight \| kg	1650 kg
	Volume \| l	3795 l
	Power \| kW	41,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KT 5000/02/A
	Max. temperature \| C°	250°C
	Inside dimensions \| mm	W 2000 x D 2000 x H 1250
	Outside dimensions \| mm	W 2900 x D 3700 x H 1800
	Weight \| kg	1700 kg
	Volume \| l	5000 l
	Power \| kW	48,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KT 6000/02/A
	Max. temperature \| C°	250°C
	Inside dimensions \| mm	W 2000 x D 2000 x H 1500
	Outside dimensions \| mm	W 2900 x D 3700 x H 1000
	Weight \| kg	1800 kg
	Volume \| l	6000 l
	Power \| kW	66,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KT 8000/02/A
	Max. temperature \| C°	250°C
	Inside dimensions \| mm	W 2200 x D 1500 x H 2300
	Outside dimensions \| mm	W 3100 x D 2900 x H 2900
	Weight \| kg	1900 kg
	Volume \| l	7590 l
	Power \| kW	78,0 kW
	Voltage \| V	400 3/N V

PDF Download for this category:

Technical specifications

Air circulation chamber furnaces over 1000l KT 1000/04/A - KT 8000/04/A

Working temperatures up to 450°C

PDF Download for this category:

Technical specifications

Previous Next KT 1000/04/A KT 1500/04/A KT 2000/04/A KT 3000/04/A KT 4000/04/A KT 4000/04/A1 KT 5000/04/A KT 6000/04/A KT 8000/04/A

1
2
3
4
5
6
7
8
9

Infos
Options

Furnaces for maximum temperatures of 250 °C and 450 °C, e.g. for drying and preheating of large batches
All furnaces with horizontal or vertical airflow, electrically heated
Robust design with double-walled housing, inside covering of insulation and air guide box made of heat-resistant stainless steel
Furnace door designed as single-wing or double-wing swing door
High-quality insulation with low heat losses and power consumption. In addition inside covered with metal sheets to prevent charge from dust contamination
Powerful air-circulation fans for high air exchange and optimum temperature distribution of up to +/- 5 K according to DIN 17052 inside the usable chamber
Manual exhaust air flaps

Pneumatic, electric or hydraulic lift door
Entry ramp/drive-in-tracks for ground level entry with charging trolley
Individually adapted charging trolleys with and without shelving system
Rail-bound charging carriages with electric drive
Automatic supply and exhaust air flap control for furnace ventilation
Air inlet fan for smooth furnace chamber ventilation and atmosphere exchange
Automatic cooling system for forced cooling and air exchange
Inspection window and furnace chamber lighting
All models also available with indirect gas heating
Optical/Acoustic Signals
Second door instead of furnace rear wall
Connections for vacuum pump and thermocouples

Next model

Technical specifications
	Model	KT 1000/04/A
	Max. temperature \| C°	450°C
	Inside dimensions \| mm	W 1000 x D 850 x H 1200
	Outside dimensions \| mm	W 1700 x D 1400 x H 1750
	Weight \| kg	670 kg
	Volume \| l	1020 l
	Power \| kW	20,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KT 1500/04/A
	Max. temperature \| C°	450°C
	Inside dimensions \| mm	W 1000 x D 850 x H 1850
	Outside dimensions \| mm	W 1800 x D 2100 x H 2400
	Weight \| kg	810 kg
	Volume \| l	1570 l
	Power \| kW	36,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KT 2000/04/A
	Max. temperature \| C°	450°C
	Inside dimensions \| mm	W 1100 x D 1500 x H 1200
	Outside dimensions \| mm	W 1900 x D 2900 x H 1750
	Weight \| kg	1100 kg
	Volume \| l	1980 l
	Power \| kW	41,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KT 3000/04/A
	Max. temperature \| C°	450°C
	Inside dimensions \| mm	W 1000 x D 1500 x H 2000
	Outside dimensions \| mm	W 1800 x D 2900 x H 2500
	Weight \| kg	1300 kg
	Volume \| l	3000 l
	Power \| kW	48,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KT 4000/04/A
	Max. temperature \| C°	450°C
	Inside dimensions \| mm	W 2200 x D 1500 x H 1200
	Outside dimensions \| mm	W 3000 x D 2900 x H 1750
	Weight \| kg	1650 kg
	Volume \| l	3960 l
	Power \| kW	53,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KT 4000/04/A1
	Max. temperature \| C°	450°C
	Inside dimensions \| mm	W 1100 x D 1500 x H 2300
	Outside dimensions \| mm	W 1900 x D 2900 x H 2900
	Weight \| kg	1650 kg
	Volume \| l	3795 l
	Power \| kW	53,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KT 5000/04/A
	Max. temperature \| C°	450°C
	Inside dimensions \| mm	W 2000 x D 2000 x H 1250
	Outside dimensions \| mm	W 2900 x D 3700 x H 1800
	Weight \| kg	1700 kg
	Volume \| l	5000 l
	Power \| kW	66,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KT 6000/04/A
	Max. temperature \| C°	450°C
	Inside dimensions \| mm	W 2000 x D 2000 x H 1500
	Outside dimensions \| mm	W 2900 x D 3700 x H 1000
	Weight \| kg	1800 kg
	Volume \| l	6000 l
	Power \| kW	90,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KT 8000/04/A
	Max. temperature \| C°	450°C
	Inside dimensions \| mm	W 2200 x D 1500 x H 2300
	Outside dimensions \| mm	W 3100 x D 2900 x H 2900
	Weight \| kg	1900 kg
	Volume \| l	7590 l
	Power \| kW	96,0 kW
	Voltage \| V	400 3/N V

PDF Download for this category:

Technical specifications

Air circulation chamber furnaces over 1000l KM 1000/06/A - KM 4000/06/A1

Working temperatures up to 650°C

PDF Download for this category:

Technical specifications

Previous Next KM 1000/06/A KM 1500/06/A KM 1500/06/A1 KM 2000/06/A KM 2000/06/A1 KM 4000/06/A KM 4000/06/A1

1
2
3
4
5
6
7

Infos
Options

Air-circulation chamber furnaces for heavy indus-trial use, suitable for batch weights of several tons depending on design
Robust housing made of high-quality sheet steel
Inner housing made of heat-resistant stainless steel with long service life, extremely resistant and corrosion withstanding
Furnace designed with parallel-guided door
High-quality heating elements with long service life
Multi-sided heating and powerful horizontal air circulation for even temperature distribution up to +/- 5 K according to DIN 17052 inside the usable chamber
Optimum air flow due to air guidance system with adapted arrangement of air outlet openings
High-quality insulation for low energy consumption and low electricity costs

Pneumatic, electric or hydraulic lift door
Automatic exhaust air flap control
Powerful fan cooling
Semi-gastight furnace with protective gas connection for operation under non-flammable protective gas
Gas supply systems
Charging racks and aids
Optical/Acoustic Signals
Individual solutions adapted to customers needs

Next model

Technical specifications
	Model	KM 1000/06/A
	Max. temperature \| C°	650°C
	Inside dimensions \| mm	W 1000 x D 1000 x H 1000
	Outside dimensions \| mm	W 1320 x D 1780 x H 1940
	Weight \| kg	1300 kg
	Volume \| l	1000 l
	Power \| kW	39,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KM 1500/06/A
	Max. temperature \| C°	650°C
	Inside dimensions \| mm	W 1500 x D 1000 x H 1000
	Outside dimensions \| mm	W 2020 x D 2150 x H 1750
	Weight \| kg	1500 kg
	Volume \| l	1500 l
	Power \| kW	51,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KM 1500/06/A1
	Max. temperature \| C°	650°C
	Inside dimensions \| mm	W 1000 x D 1500 x H 1000
	Outside dimensions \| mm	W 1520 x D 2650 x H 1750
	Weight \| kg	1500 kg
	Volume \| l	1500 l
	Power \| kW	51,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KM 2000/06/A
	Max. temperature \| C°	650°C
	Inside dimensions \| mm	W 2000 x D 1000 x H 1000
	Outside dimensions \| mm	W 2520 x D 2150 x H 1750
	Weight \| kg	1750 kg
	Volume \| l	2000 l
	Power \| kW	75,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KM 2000/06/A1
	Max. temperature \| C°	650°C
	Inside dimensions \| mm	W 1000 x D 2000 x H 1000
	Outside dimensions \| mm	W 1520 x D 2560 x H 1750
	Weight \| kg	1750 kg
	Volume \| l	2000 l
	Power \| kW	75,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KM 4000/06/A
	Max. temperature \| C°	650°C
	Inside dimensions \| mm	W 2200 x D 1500 x H 1200
	Outside dimensions \| mm	W 2750 x D 2650 x H 2140
	Weight \| kg	2300 kg
	Volume \| l	3960 l
	Power \| kW	85,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KM 4000/06/A1
	Max. temperature \| C°	650°C
	Inside dimensions \| mm	W 1500 x D 2200 x H 1200
	Outside dimensions \| mm	W 2020 x D 2850 x H 2140
	Weight \| kg	2300 kg
	Volume \| l	4000 l
	Power \| kW	85,0 kW
	Voltage \| V	400 3/N V

PDF Download for this category:

Technical specifications

Air circulation chamber furnaces over 1000l KM 1000/08/A - KM 4000/08/A1

Working temperatures up to 850°C

PDF Download for this category:

Technical specifications

Previous Next KM 1000/08/A KM 1500/08/A KM 1500/08/A1 KM 2000/08/A KM 2000/08/A1 KM 4000/08/A KM 4000/08/A1

1
2
3
4
5
6
7

Infos
Options

Air-circulation chamber furnaces for heavy indus-trial use, suitable for batch weights of several tons depending on design
Robust housing made of high-quality sheet steel
Inner housing made of heat-resistant stainless steel with long service life, extremely resistant and corrosion withstanding
Furnace designed with parallel-guided door
High-quality heating elements with long service life
Multi-sided heating and powerful horizontal air circulation for even temperature distribution up to +/- 5 K according to DIN 17052 inside the usable chamber
Optimum air flow due to air guidance system with adapted arrangement of air outlet openings
High-quality insulation for low energy consumption and low electricity costs

Pneumatic, electric or hydraulic lift door
Automatic exhaust air flap control
Powerful fan cooling
Semi-gastight furnace with protective gas connection for operation under non-flammable protective gas
Gas supply systems
Charging racks and aids
Optical/Acoustic Signals
Individual solutions adapted to customers needs

Next model

Technical specifications
	Model	KM 1000/08/A
	Max. temperature \| C°	850°C
	Inside dimensions \| mm	W 1000 x D 1000 x H 1000
	Outside dimensions \| mm	W 1320 x D 1780 x H 1940
	Weight \| kg	1300 kg
	Volume \| l	1000 l
	Power \| kW	45,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KM 1500/08/A
	Max. temperature \| C°	850°C
	Inside dimensions \| mm	W 1500 x D 1000 x H 1000
	Outside dimensions \| mm	W 2020 x D 2150 x H 1750
	Weight \| kg	1500 kg
	Volume \| l	1500 l
	Power \| kW	65,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KM 1500/08/A1
	Max. temperature \| C°	850°C
	Inside dimensions \| mm	W 1000 x D 1500 x H 1000
	Outside dimensions \| mm	W 1520 x D 2650 x H 1750
	Weight \| kg	1500 kg
	Volume \| l	1500 l
	Power \| kW	65,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KM 2000/08/A
	Max. temperature \| C°	850°C
	Inside dimensions \| mm	W 2000 x D 1000 x H 1000
	Outside dimensions \| mm	W 2520 x D 2150 x H 1750
	Weight \| kg	1750 kg
	Volume \| l	2000 l
	Power \| kW	83,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KM 2000/08/A1
	Max. temperature \| C°	850°C
	Inside dimensions \| mm	W 1000 x D 2000 x H 1000
	Outside dimensions \| mm	W 1520 x D 2560 x H 1750
	Weight \| kg	1750 kg
	Volume \| l	2000 l
	Power \| kW	83,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KM 4000/08/A
	Max. temperature \| C°	850°C
	Inside dimensions \| mm	W 2200 x D 1500 x H 1200
	Outside dimensions \| mm	W 2750 x D 2650 x H 2140
	Weight \| kg	2300 kg
	Volume \| l	3960 l
	Power \| kW	97,0 kW
	Voltage \| V	400 3/N V

Next model

Technical specifications
	Model	KM 4000/08/A1
	Max. temperature \| C°	850°C
	Inside dimensions \| mm	W 1500 x D 2200 x H 1200
	Outside dimensions \| mm	W 2020 x D 2850 x H 2140
	Weight \| kg	2300 kg
	Volume \| l	4000 l
	Power \| kW	97,0 kW
	Voltage \| V	400 3/N V
