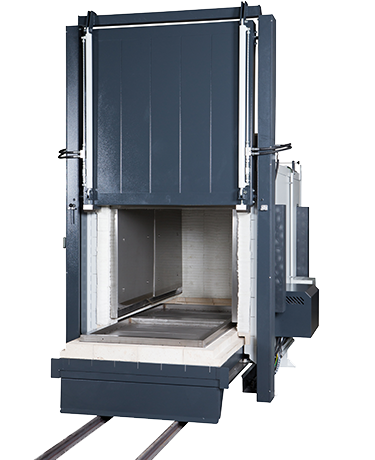

Bogie-Hearth furnaces WM 1000/09 - WM 7200/09
Working temperatures up to 900°C
PDF Download for this category:
Technical specifications
- Bogie hearth furnaces particularly suitable for heat treatment of large batches with high load weight
- Furnaces with maximum temperatures of 900 °C and 1280 °C
- Robust housing constructions, double-walled design with rear ventilation for low outside wall temperature
- Furnace door in standard version as parallel-guided swing door, simple and easy to use, with the warm side the away from the operator
- Sturdy bogie with flange wheels on rails, incl. rails in front of the furnace
- Heating elements of the bogie covered by SiC plates, easy loading due to flat support
- Bottom slide and manual exhaust air flaps in the furnace roof
- 5-sided heating (left, right, rear wall, door, bogie hearth), thereby extraordinary even temperature distribution
- Electric or hydraulic lift door, operated by foot pedal or 2-hand operation
- Automatic fresh air and exhaust air flap control for furnace ventilation
- Automatic cooling system for forced cooling
- Multi-zone control to increase temperature uniformity
- Electric bogie drive
- 2. bogie
- Furnace installation with transverse shaunting track for several bogies and parking rails
- Second door on the rear wall of the furnace, e.g. for the operation with two bogies
- Support grate for bogie hearth, made of heat-resistant cast steel for optimum and even weight distribution
- Customer-specific special design
Next model
| Technical specifications | ||
|---|---|---|
 |
Model | WM 1000/09 |
 |
Max. temperature | C° | 900°C |
 |
Inside dimensions | mm | W 900 x D 2000 x H 600 |
 |
Outside dimensions | mm | W 2350 x D 3050 x H 2650 |
 |
Weight | kg | 1420 kg |
 |
Volume | l | 1080 l |
 |
Power | kW | 45,0 kW |
 |
Voltage | V | 400 3/N V |
Next model
| Technical specifications | ||
|---|---|---|
|
Model | WM 1500/09 |
|
Max. temperature | C° | 900°C |
|
Inside dimensions | mm | W 900 x D 2000 x H 900 |
|
Outside dimensions | mm | W 2350 x D 3050 x H 2950 |
|
Weight | kg | 1570 kg |
|
Volume | l | 1620 l |
|
Power | kW | 65,0 kW |
|
Voltage | V | 400 3/N V |
Next model
| Technical specifications | ||
|---|---|---|
|
Model | WM 2000/09 |
|
Max. temperature | C° | 900°C |
|
Inside dimensions | mm | W 1000 x D 2300 x H 900 |
|
Outside dimensions | mm | W 2450 x D 3500 x H 2950 |
|
Weight | kg | 1950 kg |
|
Volume | l | 2070 l |
|
Power | kW | 85,0 kW |
|
Voltage | V | 400 3/N V |
Next model
| Technical specifications | ||
|---|---|---|
|
Model | WM 3200/09 |
|
Max. temperature | C° | 900°C |
|
Inside dimensions | mm | W 1000 x D 2700 x H 1200 |
|
Outside dimensions | mm | W 2450 x D 4000 x H 3250 |
|
Weight | kg | 2400 kg |
|
Volume | l | 3240 l |
|
Power | kW | 115,0 kW |
|
Voltage | V | 400 3/N V |
Next model
| Technical specifications | ||
|---|---|---|
|
Model | WM 5000/09 |
|
Max. temperature | C° | 900°C |
|
Inside dimensions | mm | W 1200 x D 3500 x H 1200 |
|
Outside dimensions | mm | W 2700 x D 4800 x H 3250 |
|
Weight | kg | 4600 kg |
|
Volume | l | 5040 l |
|
Power | kW | 135,0 kW |
|
Voltage | V | 400 3/N V |
Next model
| Technical specifications | ||
|---|---|---|
|
Model | WM 7200/09 |
|
Max. temperature | C° | 900°C |
|
Inside dimensions | mm | W 1200 x D 4000 x H 1500 |
|
Outside dimensions | mm | W 2700 x D 5050 x H 4500 |
|
Weight | kg | 5300 kg |
|
Volume | l | 7200 l |
|
Power | kW | 155,0 kW |
|
Voltage | V | 400 3/N V |
