Chamber furnaces

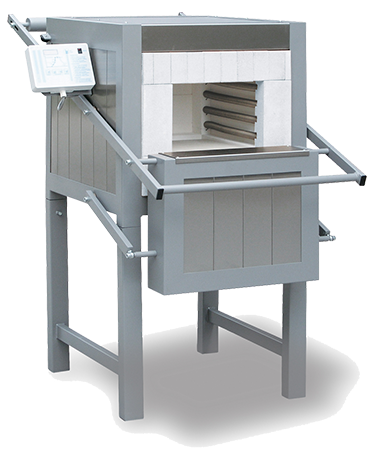

Chamber furnaces KM 10/13 – KM 70/13

Working temperatures up to 1300°C

PDF Download for this category:

Technical specifications

  • Very robust chamber furnaces e.g. for annealing, hardening, powder carburizing and powder nitriding, preheating, forging etc.
  • Double-walled housing with rear ventilation for low outside shell temperature
  • Parallel guided swing door opening downwards (KM 10/13 – KM 70/13), with steel tray on the door as charging aid as well as door lintel, both made of stainless steel, loading height approx. 900 mm
  • From KM 110/13 manual parallel guided door up-wards opening, with counterweight, easy to open, from KM 780/13 with hydraulic lift door
  • Base frame already included in the standard scope of delivery (from KM 50/13)
  • Multi-layer insulation (lightweight refractory bricks and insulation) for low heat loss, low energy con-sumption, low electricity costs
  • 3-sided heating (from both sides and bottom) with heating wire for a uniform temperature distribution in the furnace chamber
  • Heating elements mounted on ceramic support tubes, free heat radiation into the furnace chamber, thereby energy saving and long service life of the heating elements
  • Covering of the floor heating elements by heat permeable silicon carbide plates with high mechanical strength, to protect the bottom heating
  • Sufficiently dimensioned power guarantee short heating times

  • Charging plates and grates as additional protection for the furnace bottom
  • Lateral protective cover of the heating elements through silicon carbide boards
  • Lift door with hydraulic drive, operable via foot pedal or 2-hand operation (standard from KM 780/13)
  • Automatic fresh air and exhaust air flaps, controlled via the program controller
  • Fresh air fan for forced cooling of the batch or exhaust gas discharge
  • Semi-gas-tight design with special sealing and gas connection for non-flammable protective gases
  • Gassing and hardening boxes and suitable charging aids

Next model
Technical specifications
Model Model KM 10/13
Max. temperature Max. temperature | C° 1300°C
Inside dimensions Inside dimensions | mm W 250 x D 250 x H 120
Outside dimensions Outside dimensions | mm W 500 x D 600 x H 700
Weight Weight | kg 69 kg
Volume Volume | l 8 l
Power Power | kW 2,5 kW
Voltage Voltage | V 230 1/N V
Next model
Technical specifications
Model Model KM 15/13
Max. temperature Max. temperature | C° 1300°C
Inside dimensions Inside dimensions | mm W 250 x D 250 x H 200
Outside dimensions Outside dimensions | mm W 500 x D 700 x H 700
Weight Weight | kg 75 kg
Volume Volume | l 13 l
Power Power | kW 3,6 kW
Voltage Voltage | V 230 1/N V
Next model
Technical specifications
Model Model KM 20/13
Max. temperature Max. temperature | C° 1300°C
Inside dimensions Inside dimensions | mm W 250 x D 350 x H 200
Outside dimensions Outside dimensions | mm W 500 x D 700 x H 700
Weight Weight | kg 91 kg
Volume Volume | l 18 l
Power Power | kW 6,0 kW
Voltage Voltage | V 400 3/N V
Next model
Technical specifications
Model Model KM 30/13
Max. temperature Max. temperature | C° 1300°C
Inside dimensions Inside dimensions | mm W 250 x D 500 x H 200
Outside dimensions Outside dimensions | mm W 500 x D 850 x H 700
Weight Weight | kg 105 kg
Volume Volume | l 30 l
Power Power | kW 7,0 kW
Voltage Voltage | V 400 3/N V
Next model
Technical specifications
Model Model KM 50/13
Max. temperature Max. temperature | C° 1300°C
Inside dimensions Inside dimensions | mm W 350 x D 500 x H 250
Outside dimensions Outside dimensions | mm W 950 x D 1500 x H 1490
Weight Weight | kg 268 kg
Volume Volume | l 44 l
Power Power | kW 13 kW
Voltage Voltage | V 400 3/N V
Next model
Technical specifications
Model Model KM 70/13
Max. temperature Max. temperature | C° 1300°C
Inside dimensions Inside dimensions | mm W 350 x D 750 x H 250
Outside dimensions Outside dimensions | mm W 950 x D 1500 x H 1740
Weight Weight | kg 330 kg
Volume Volume | l 66 l
Power Power | kW 20 kW
Voltage Voltage | V 400 3/N V

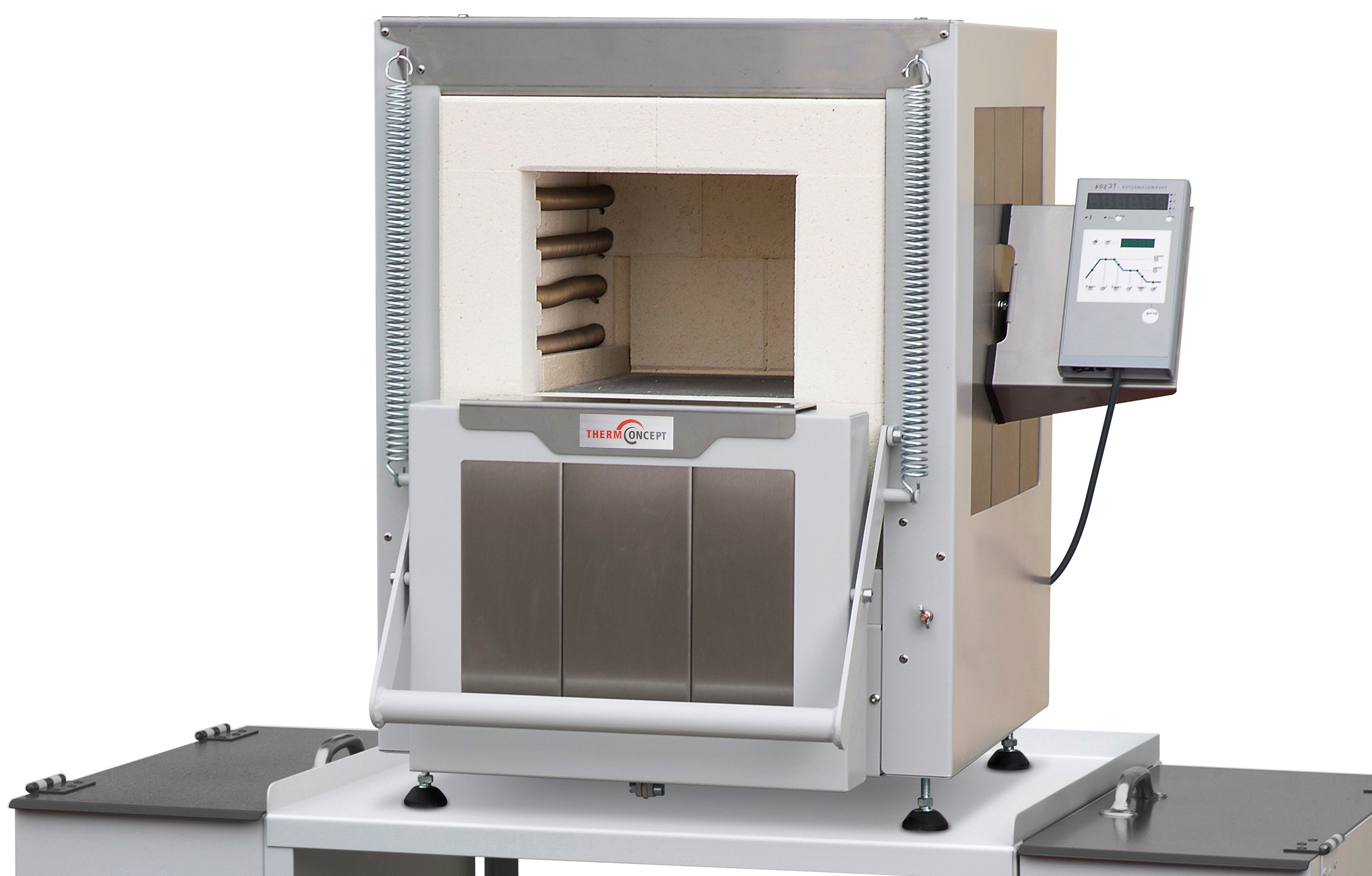

Chamber furnaces KM 110/13 – KM 1600/13

Working temperatures up to 1280°C

PDF Download for this category:

Technical specifications

  • Very robust chamber furnaces e.g. for annealing, hardening, powder carburizing and powder nitriding, preheating, forging etc.
  • Double-walled housing with rear ventilation for low outside shell temperature
  • Parallel guided swing door opening downwards (KM 10/13 – KM 70/13), with steel tray on the door as charging aid as well as door lintel, both made of stainless steel, loading height approx. 900 mm
  • From KM 110/13 manual parallel guided door up-wards opening, with counterweight, easy to open, from KM 780/13 with hydraulic lift door
  • Base frame already included in the standard scope of delivery (from KM 50/13)
  • Multi-layer insulation (lightweight refractory bricks and insulation) for low heat loss, low energy con-sumption, low electricity costs
  • 3-sided heating (from both sides and bottom) with heating wire for a uniform temperature distribution in the furnace chamber
  • Heating elements mounted on ceramic support tubes, free heat radiation into the furnace chamber, thereby energy saving and long service life of the heating elements
  • Covering of the floor heating elements by heat permeable silicon carbide plates with high mechanical strength, to protect the bottom heating
  • Sufficiently dimensioned power guarantee short heating times

  • Charging plates and grates as additional protection for the furnace bottom
  • Lateral protective cover of the heating elements through silicon carbide boards
  • Lift door with hydraulic drive, operable via foot pedal or 2-hand operation (standard from KM 780/13)
  • Automatic fresh air and exhaust air flaps, controlled via the program controller
  • Fresh air fan for forced cooling of the batch or exhaust gas discharge
  • Semi-gas-tight design with special sealing and gas connection for non-flammable protective gases
  • Gassing and hardening boxes and suitable charging aids

Next model
Technical specifications
Model Model KM 110/13
Max. temperature Max. temperature | C° 1280°C
Inside dimensions Inside dimensions | mm W 500 x D 650 x H 350
Outside dimensions Outside dimensions | mm W 1350 x D 1750 x H 1950
Weight Weight | kg 670 kg
Volume Volume | l 110 l
Power Power | kW 22 kW
Voltage Voltage | V 400 3/N V
Next model
Technical specifications
Model Model KM 140/13
Max. temperature Max. temperature | C° 1280°C
Inside dimensions Inside dimensions | mm W 500 x D 800 x H 350
Outside dimensions Outside dimensions | mm W 1350 x D 2130 x H 1950
Weight Weight | kg 770 kg
Volume Volume | l 140 l
Power Power | kW 25 kW
Voltage Voltage | V 400 3/N V
Next model
Technical specifications
Model Model KM 190/13
Max. temperature Max. temperature | C° 1280°C
Inside dimensions Inside dimensions | mm W 600 x D 800 x H 400
Outside dimensions Outside dimensions | mm W 1400 x D 2130 x H 1980
Weight Weight | kg 950 kg
Volume Volume | l 190 l
Power Power | kW 30 kW
Voltage Voltage | V 400 3/N V
Next model
Technical specifications
Model Model KM 240/13
Max. temperature Max. temperature | C° 1280°C
Inside dimensions Inside dimensions | mm W 600 x D 800 x H 500
Outside dimensions Outside dimensions | mm W 1400 x D 2130 x H 2300
Weight Weight | kg 970 kg
Volume Volume | l 240 l
Power Power | kW 35 kW
Voltage Voltage | V 400 3/N V
Next model
Technical specifications
Model Model KM 410/13
Max. temperature Max. temperature | C° 1280°C
Inside dimensions Inside dimensions | mm W 750 x D 1100 x H 500
Outside dimensions Outside dimensions | mm W 1600 x D 2200 x H 2300
Weight Weight | kg 1250 kg
Volume Volume | l 410 l
Power Power | kW 50 kW
Voltage Voltage | V 400 3/N V
Next model
Technical specifications
Model Model KM 590/13
Max. temperature Max. temperature | C° 1280°C
Inside dimensions Inside dimensions | mm W 650 x D 1500 x H 600
Outside dimensions Outside dimensions | mm W 1500 x D 3000 x H 2400
Weight Weight | kg 1650 kg
Volume Volume | l 590 l
Power Power | kW 50 kW
Voltage Voltage | V 400 3/N V
Next model
Technical specifications
Model Model KM 780/13
Max. temperature Max. temperature | C° 1280°C
Inside dimensions Inside dimensions | mm W 1000 x D 1300 x H 600
Outside dimensions Outside dimensions | mm W 1850 x D 2400 x H 2400
Weight Weight | kg 1750 kg
Volume Volume | l 780 l
Power Power | kW 70 kW
Voltage Voltage | V 400 3/N V
Next model
Technical specifications
Model Model KM 1000/13
Max. temperature Max. temperature | C° 1280°C
Inside dimensions Inside dimensions | mm W 900 x D 1900 x H 600
Outside dimensions Outside dimensions | mm W 1750 x D 3400 x H 2400
Weight Weight | kg 2000 kg
Volume Volume | l 1030 l
Power Power | kW 75 kW
Voltage Voltage | V 400 3/N V
Next model
Technical specifications
Model Model KM 1240/13
Max. temperature Max. temperature | C° 1280°C
Inside dimensions Inside dimensions | mm W 1500 x D 1500 x H 550
Outside dimensions Outside dimensions | mm W 2680 x D 2450 x H 2620
Weight Weight | kg 2500 kg
Volume Volume | l 1240 l
Power Power | kW 90 kW
Voltage Voltage | V 400 3/N V
Next model
Technical specifications
Model Model KM 1600/13
Max. temperature Max. temperature | C° 1280°C
Inside dimensions Inside dimensions | mm W 1700 x D 1200 x H 800
Outside dimensions Outside dimensions | mm W 2300 x D 3200 x H 2750
Weight Weight | kg 2600 kg
Volume Volume | l 1630 l
Power Power | kW 110 kW
Voltage Voltage | V 400 3/N V
